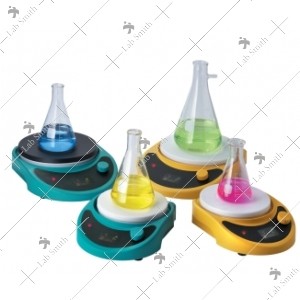

Magnetic Stirrers (Digital)
Powerful magnets and motors guarantee a high-speed and a good management of the devices.
Performance & Convenience
-
Ergonomic designed, lightweight, easy to operate, and low profile.
-
Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
-
Spark-less, silent and durable BLDC motor.
-
Wide top plate.
-
Two non-slip silicon plate covers (white & black) provided.
-
Non-slip strength rubber feet.
-
Strong magnetic coupling to ensure constant stirring.
-
Digital PID feedback control for reproducible stirring results.
-
Convenient program control.
-
Gradual start-up to protect users against splashing of samples.
-
Bright and vivid VFD and responsive touch buttons.
-
Easy-settable digital timer (1 min. to 99hr. 59min.)
-
M10 threaded hole to hold a support rod.
Safety
Model |
LSMS-17G |
LSMS-22G |
Technical data |
Speed control |
Feedback control with PID |
Stirring capacity (Liter, H2O) |
4 |
5 |
Speed range (rpm) |
30 to 2,000 |
Speed display |
VFD |
Motor rating input / output (W) |
2.9 / 1.6 |
Magnetic bar, Max. (Ø×L) (mm / inch) |
8×40 / 0.31×1.57 |
10×50 / 0.39×1.97 |
Load, Max (kg / lbs) |
20 / 44.09 |
25 / 55.12 |
Top plate |
Material |
Polypropylene with non-slip silicon cover |
Dimension (Ø, mm / inch) |
170 / 6.69 |
220 / 8.66 |
General data |
Body material |
Polypropylene |
Dimension (W×D×H) (mm / inch) |
210×280×72 / 8.3×11×2.8 |
260×355×72 / 10.2×14×2.8 |
Net weight (kg / lbs) |
1.35 / 2.98 |
1.75 / 3.86 |
Electrical requirements |
AC 100 ~ 240V, 50 / 60Hz |
Power consumption (W) |
6 |
Protection class (DIN EN 60529) |
IP42 |
