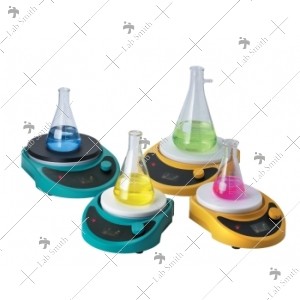

Magnetic Stirrers (Digital)

Magnetic Stirrers (Digital)

More Views

Magnetic Stirrers (Digital)

Code:
Magnetic Stirrers (Digital)
Powerful magnets and motors guarantee a high-speed and a good management of the devices.
Performance & Convenience
  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Spark-less, silent and durable BLDC motor.
  • Wide top plate.
  • Two non-slip silicon plate covers (white & black) provided.
  • Non-slip strength rubber feet.
  • Strong magnetic coupling to ensure constant stirring.
  • Digital PID feedback control for reproducible stirring results.
  • Convenient program control.
  • Gradual start-up to protect users against splashing of samples.
  • Bright and vivid VFD and responsive touch buttons.
  • Easy-settable digital timer (1 min. to 99hr. 59min.)
  • M10 threaded hole to hold a support rod.

Safety
  • Unit is safely designed to protect internal components from accidental spills.
  • Built-in thermal shutdown and current limit protection.

Model LSMS-17G LSMS-22G
Technical data Speed control Feedback control with PID
Stirring capacity (Liter, H2O) 4 5
Speed range (rpm) 30 to 2,000
Speed display VFD
Motor rating input / output (W) 2.9 / 1.6
Magnetic bar, Max. (Ø×L) (mm / inch) 8×40 / 0.31×1.57 10×50 / 0.39×1.97
Load, Max (kg / lbs) 20 / 44.09 25 / 55.12
Top plate Material Polypropylene with non-slip silicon cover
Dimension (Ø, mm / inch) 170 / 6.69 220 / 8.66
General data Body material Polypropylene
Dimension (W×D×H) (mm / inch) 210×280×72 / 8.3×11×2.8 260×355×72 / 10.2×14×2.8
Net weight (kg / lbs) 1.35 / 2.98 1.75 / 3.86
Electrical requirements AC 100 ~ 240V, 50 / 60Hz
Power consumption (W) 6
Protection class (DIN EN 60529) IP42
Cat. No. Persian blue KR plug JAAH331215BK JAAH331315BK
US plug JAAH331215BU JAAH331315BU
Yellow KR plug JAAH331215YK JAAH331315YK
US plug JAAH331215YU JAAH331315YU


Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW1513 8 / 0.31 13 / 0.51
LSBCW1515 8 / 0.31 15 / 0.59
LSBCW1522 8 / 0.31 22 / 0.86
LSBCW1525 8 / 0.31 25 / 0.98
LSBCW1528 8 / 0.31 28 / 0.10
LSBCW1538 8 / 0.31 38 / 1.49
LSBCW1541 8 / 0.31 41 / 1.61
LSBCW1551 8 / 0.31 51 / 2.00
LSBCW155110 10 / 0.39 51 / 2.00

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW11138 8 / 0.31 13 / 0.51
LSBCW11156 6 / 0.23 15 / 0.59
LSBCW11208 8 / 0.31 20 /  0.78
LSBCW11258 8 / 0.31 25 / 0.98
LSBCW11308 8 / 0.31 30 / 1.18
LSBCW1140 8 / 0.31 40 / 1.57
LSBCW1150 8 / 0.31 50 / 1.96

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW1610 5 / 0.19 10 / 0.39
LSBCW1615 6 / 0.23 15 / 0.59
LSBCW1620 10 / 0.39 20 /  0.78
LSBCW162510 10 / 0.39 25 / 0.98
LSBCW1630 16 / 0.63 30 / 1.18
LSBCW1635 16 / 0.63 35 / 1.38
LSBCW1640 20 / 0.78 40 / 1.57
LSBCW1650 20 / 0.78 50 / 1.96

Description

Details

Magnetic Stirrers (Digital)
Powerful magnets and motors guarantee a high-speed and a good management of the devices.
Performance & Convenience
  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Spark-less, silent and durable BLDC motor.
  • Wide top plate.
  • Two non-slip silicon plate covers (white & black) provided.
  • Non-slip strength rubber feet.
  • Strong magnetic coupling to ensure constant stirring.
  • Digital PID feedback control for reproducible stirring results.
  • Convenient program control.
  • Gradual start-up to protect users against splashing of samples.
  • Bright and vivid VFD and responsive touch buttons.
  • Easy-settable digital timer (1 min. to 99hr. 59min.)
  • M10 threaded hole to hold a support rod.

Safety
  • Unit is safely designed to protect internal components from accidental spills.
  • Built-in thermal shutdown and current limit protection.

Model LSMS-17G LSMS-22G
Technical data Speed control Feedback control with PID
Stirring capacity (Liter, H2O) 4 5
Speed range (rpm) 30 to 2,000
Speed display VFD
Motor rating input / output (W) 2.9 / 1.6
Magnetic bar, Max. (Ø×L) (mm / inch) 8×40 / 0.31×1.57 10×50 / 0.39×1.97
Load, Max (kg / lbs) 20 / 44.09 25 / 55.12
Top plate Material Polypropylene with non-slip silicon cover
Dimension (Ø, mm / inch) 170 / 6.69 220 / 8.66
General data Body material Polypropylene
Dimension (W×D×H) (mm / inch) 210×280×72 / 8.3×11×2.8 260×355×72 / 10.2×14×2.8
Net weight (kg / lbs) 1.35 / 2.98 1.75 / 3.86
Electrical requirements AC 100 ~ 240V, 50 / 60Hz
Power consumption (W) 6
Protection class (DIN EN 60529) IP42
Cat. No. Persian blue KR plug JAAH331215BK JAAH331315BK
US plug JAAH331215BU JAAH331315BU
Yellow KR plug JAAH331215YK JAAH331315YK
US plug JAAH331215YU JAAH331315YU


Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW1513 8 / 0.31 13 / 0.51
LSBCW1515 8 / 0.31 15 / 0.59
LSBCW1522 8 / 0.31 22 / 0.86
LSBCW1525 8 / 0.31 25 / 0.98
LSBCW1528 8 / 0.31 28 / 0.10
LSBCW1538 8 / 0.31 38 / 1.49
LSBCW1541 8 / 0.31 41 / 1.61
LSBCW1551 8 / 0.31 51 / 2.00
LSBCW155110 10 / 0.39 51 / 2.00

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW11138 8 / 0.31 13 / 0.51
LSBCW11156 6 / 0.23 15 / 0.59
LSBCW11208 8 / 0.31 20 /  0.78
LSBCW11258 8 / 0.31 25 / 0.98
LSBCW11308 8 / 0.31 30 / 1.18
LSBCW1140 8 / 0.31 40 / 1.57
LSBCW1150 8 / 0.31 50 / 1.96

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW1610 5 / 0.19 10 / 0.39
LSBCW1615 6 / 0.23 15 / 0.59
LSBCW1620 10 / 0.39 20 /  0.78
LSBCW162510 10 / 0.39 25 / 0.98
LSBCW1630 16 / 0.63 30 / 1.18
LSBCW1635 16 / 0.63 35 / 1.38
LSBCW1640 20 / 0.78 40 / 1.57
LSBCW1650 20 / 0.78 50 / 1.96
