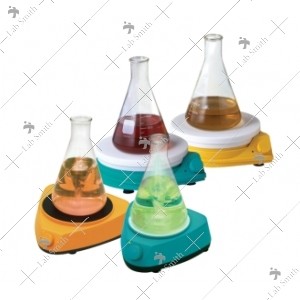

Magnetic Stirrers (Scale)

Powerful magnets and motors guarantee a high-speed and a good management of the devices.

Performance & Convenience

Ergonomic designed, lightweight, easy to operate, and low profile.

Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.

Spark-less, silent and durable BLDC motor.

Two non-slip silicon plate covers (white & black) provided

Strong magnetic coupling to ensure constant stirring.

Safety

Unit is safely designed to protect internal components from accidental spills.

Built-in thermal shutdown and current limit protection.

Model		LSMS-12B	LSMS-12T	LSMS-17B	LSMS-17T	LSMS-22B
Technical data	Speed control	Electronic speed control
	Stirring capacity (Liter, H2O)	2		4		5
	Speed range (rpm)	150 to 2,500
	Speed display	None
	Motor rating input / output (W)	2.9 / 1.6
	Magnetic bar, Max. (Ø×L) (mm / inch)	8×30 / 0.31×1.18	8×30 / 0.31×1.18	8×40 / 0.31×1.57	8×30 / 0.31×1.18	10×50 / 0.39×1.97
	Load, max (kg / lbs)	15 / 33.07	10 / 22.05	20 / 44.09	20 / 44.09	25 / 55.12
Top plate	Material	Polypropylene with non-slip silicon cover
Top plate	Dimension (Ø, mm / inch)	120 / 4.72	115 / 4.53	170 / 6.69	165 / 6.5	220 / 8.66
General data	Body shape	Round type	Triangle type	Round type	Triangle type	Round type
	Body material	Polypropylene
	Dimension (W×D×H) (mm / inch)	130×133×65 / 5.1×5.2×2.56	181×176×64 / 7.1×6.9×2.5	180×186×65 / 7.1×7.3×2.6	246×243×64 / 9.7×9.6×2.5	230×235×65 / 9.1×9.3×2.6
	Net weight (kg / lbs)	0.6 / 1.32		0.9 / 1.98		1.1 / 2.43
	Electrical requirements	AC 100 ~ 240V, 50 / 60Hz with power adapter
	Power consumption (W)	5		6
	Protection class (DIN EN 60529)	IP42
