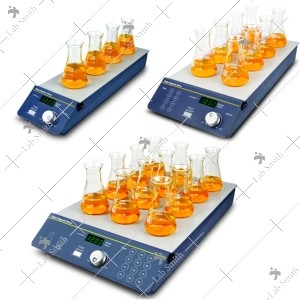

Multi-position Magnetic Stirrer

Multi-position Magnetic Stirrer

More Views

Multi-position Magnetic Stirrer

Code:
Multi-position Magnetic Stirrer
Product description: LSSP-100 / LSSP-200 / LSSP-300 series multi-position magnetic stirrer is designed for the high-efficiency experiments and has 4/8/12 stir bar configurations to choose. It can use laboratory space effective. DC brushless motor make the model:low speed but stable, high speed but powerful with low noise. Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.
Product Features
1, Digital display stirring speed at real-time , stir bar operate synchronously and provide uniform agitation reaction conditions.
2, Efficient multi-position magnetic stirrer configure 4/8/12 stirring positions to  use lab space effective.
3, DC brushless motor.Low speed but stable,high speed but powerful.Low noise and free maintenance.
4, Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.
Technical parameters
Model LSSP-100 LSSP-200 LSSP-300
Stirring Point Quantity 4 8 12
Max. Size of Stirrer Stick 40mm 40mm 40mm
Max. Stir Capacity (H2O) 400ml x 4 400ml x 8 400ml x12
Speed Range 200 ~1200rpm 200 ~1200rpm 200 ~1200rpm
Platform Material stainless steel with silicon pad stainless steel with silicon pad stainless steel with silicon pad
Motor brushless DC motor brushless DC motor brushless DC motor
Voltage AC100 ~230V, 50/60Hz AC100 ~230V, 50/60Hz AC100 ~230V, 50/60Hz
Power 20W 20W 20W
Fuse 250V,1A, Ф5×20 250V,1A, Ф5×20 250V,1A, Ф5×20
Dimension (WxDxH) 115 x 480 x 50mm 205 x 480 x 50mm 295 x 480 x 50mm
Net Weight 3kgs 4kgs 5kgs

Exchangeable blocks for JSP series
Type LSSP-A LSSP-B LSSP-C LSSP-D LSSP-E LSSP-F LSSP-G LSSP-I
Dimension(mm) Φ6X10 Φ6X20 Φ8X25 Φ6X30 Φ8X35 Φ8X45 Φ9X60 Φ9X70

Description

Details

Multi-position Magnetic Stirrer
Product description: LSSP-100 / LSSP-200 / LSSP-300 series multi-position magnetic stirrer is designed for the high-efficiency experiments and has 4/8/12 stir bar configurations to choose. It can use laboratory space effective. DC brushless motor make the model:low speed but stable, high speed but powerful with low noise. Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.
Product Features
1, Digital display stirring speed at real-time , stir bar operate synchronously and provide uniform agitation reaction conditions.
2, Efficient multi-position magnetic stirrer configure 4/8/12 stirring positions to  use lab space effective.
3, DC brushless motor.Low speed but stable,high speed but powerful.Low noise and free maintenance.
4, Stainless steel is coated by silicone resin film disk. Non-slip and anti-corrosion.
Technical parameters
Model LSSP-100 LSSP-200 LSSP-300
Stirring Point Quantity 4 8 12
Max. Size of Stirrer Stick 40mm 40mm 40mm
Max. Stir Capacity (H2O) 400ml x 4 400ml x 8 400ml x12
Speed Range 200 ~1200rpm 200 ~1200rpm 200 ~1200rpm
Platform Material stainless steel with silicon pad stainless steel with silicon pad stainless steel with silicon pad
Motor brushless DC motor brushless DC motor brushless DC motor
Voltage AC100 ~230V, 50/60Hz AC100 ~230V, 50/60Hz AC100 ~230V, 50/60Hz
Power 20W 20W 20W
Fuse 250V,1A, Ф5×20 250V,1A, Ф5×20 250V,1A, Ф5×20
Dimension (WxDxH) 115 x 480 x 50mm 205 x 480 x 50mm 295 x 480 x 50mm
Net Weight 3kgs 4kgs 5kgs

Exchangeable blocks for JSP series
Type LSSP-A LSSP-B LSSP-C LSSP-D LSSP-E LSSP-F LSSP-G LSSP-I
Dimension(mm) Φ6X10 Φ6X20 Φ8X25 Φ6X30 Φ8X35 Φ8X45 Φ9X60 Φ9X70
