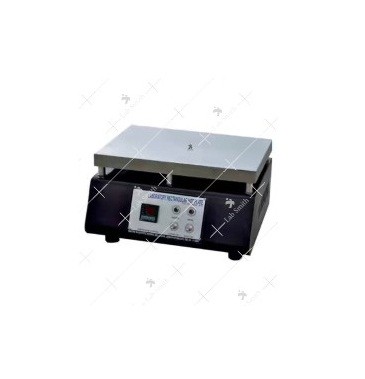

Rectangular Hot Plate -421

More Views

Code:

Rectangular Hot Plate -421

Construction

For Continuous Heating Upto 370^OC
Body is made of specially designed CRC sheet duly powder coated or Stainless Steel.
Top made of Mild Steel Plate or Stainless Steel (S.S 304) for longer life & temperature uniformity.

Technical Specifications:

MOC (Body): M.S. Sheet duly powder coated
MOC (Top Platform): Mild Steel Plate OR Stainless Steel Plate (SS-304)
Heating Element: Placed underneath for uniform heating duly insulated
Temperature Controller (OPTION): Controlled through Energy Regulator Or Digital Temperature Indicator cum Controller
Maximum Temp Range: Continuous Heating upto 370OC
Electricity Supply: 220 / 230 V AC, 50/60Hz

Ordering Information:

Cat. No.	Temp. Controller	Plate Size	Material
LI-28100/1	Rectangular Hot Plate, Energy Regulator Controlled	250 x 300 mm	Mild Steel Plate
LI-28100/2	Rectangular Hot Plate, Energy Regulator Controlled	250 x 400 mm	Mild Steel Plate
LI-28100/3	Rectangular Hot Plate, Energy Regulator Controlled	300 x 455 mm	Mild Steel Plate
LI-28100/4	Rectangular Hot Plate, Energy Regulator Controlled	455 x 605 mm	Mild Steel Plate
LI-28100/5	Rectangular Hot Plate, Digitally Controlled	250 x 300 mm	Mild Steel Plate
LI-28100/6	Rectangular Hot Plate, Digitally Controlled	250 x 400 mm	Mild Steel Plate
LI-28100/7	Rectangular Hot Plate, Digitally Controlled	300 x 455 mm	Mild Steel Plate
LI-28100/8	Rectangular Hot Plate, Digitally Controlled	455 x 605 mm	Mild Steel Plate
LI-28100/9	Rectangular Hot Plate, Digitally Controlled	250 x 300 mm	Aluminium Diecast
LI-28100/10	Rectangular Hot Plate, Digitally Controlled	250 x 400 mm	Aluminium Diecast
LI-28100/11	Rectangular Hot Plate, Digitally Controlled	300 x 455 mm	Aluminium Diecast
LI-28100/12	Rectangular Hot Plate, Digitally Controlled	455 x 605 mm	Aluminium Diecast

Description

Rectangular Hot Plate -421

Construction

For Continuous Heating Upto 370^OC
Body is made of specially designed CRC sheet duly powder coated or Stainless Steel.
Top made of Mild Steel Plate or Stainless Steel (S.S 304) for longer life & temperature uniformity.

Technical Specifications:

MOC (Body): M.S. Sheet duly powder coated
MOC (Top Platform): Mild Steel Plate OR Stainless Steel Plate (SS-304)
Heating Element: Placed underneath for uniform heating duly insulated
Temperature Controller (OPTION): Controlled through Energy Regulator Or Digital Temperature Indicator cum Controller
Maximum Temp Range: Continuous Heating upto 370OC
Electricity Supply: 220 / 230 V AC, 50/60Hz

Ordering Information:

Cat. No.	Temp. Controller	Plate Size	Material
LI-28100/1	Rectangular Hot Plate, Energy Regulator Controlled	250 x 300 mm	Mild Steel Plate
LI-28100/2	Rectangular Hot Plate, Energy Regulator Controlled	250 x 400 mm	Mild Steel Plate
LI-28100/3	Rectangular Hot Plate, Energy Regulator Controlled	300 x 455 mm	Mild Steel Plate
LI-28100/4	Rectangular Hot Plate, Energy Regulator Controlled	455 x 605 mm	Mild Steel Plate
LI-28100/5	Rectangular Hot Plate, Digitally Controlled	250 x 300 mm	Mild Steel Plate
LI-28100/6	Rectangular Hot Plate, Digitally Controlled	250 x 400 mm	Mild Steel Plate
LI-28100/7	Rectangular Hot Plate, Digitally Controlled	300 x 455 mm	Mild Steel Plate
LI-28100/8	Rectangular Hot Plate, Digitally Controlled	455 x 605 mm	Mild Steel Plate
LI-28100/9	Rectangular Hot Plate, Digitally Controlled	250 x 300 mm	Aluminium Diecast
LI-28100/10	Rectangular Hot Plate, Digitally Controlled	250 x 400 mm	Aluminium Diecast
LI-28100/11	Rectangular Hot Plate, Digitally Controlled	300 x 455 mm	Aluminium Diecast
LI-28100/12	Rectangular Hot Plate, Digitally Controlled	455 x 605 mm	Aluminium Diecast
