Details
T 10 Standard ULTRA-TURRAX® PCR Kit
Competitively priced dispersing instrument for volumes from 0.5 - 100 ml (H2O) with special PCR kit. It offers a wide speed range from 8000 – 26,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.
-
Quick-connect coupling for changing dispersing elements easily
-
Ideal for manual operation due to its light weight and ergonomic design
-
Extremely mobile due to direct line power (no transformer required)
-
Stainless steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools
-
Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis
-
High performance drive ensures immense speed stability
-
Quiet operation

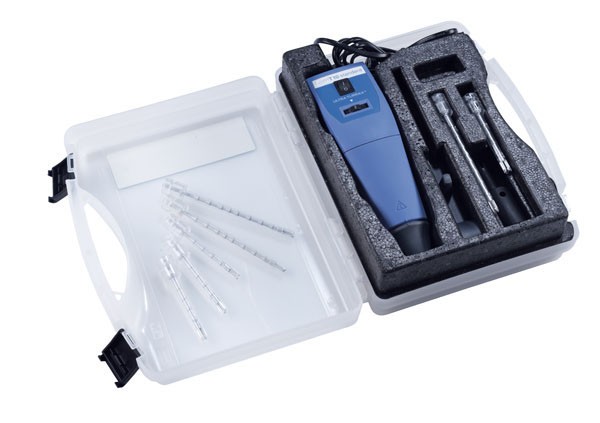

Package includes the unit + clamp R 200 + storage case with dispersing elements S 10 D - 7 G - KS - 65 and S 10 D - 7 G - KS - 110 + set of 12 dispersing elements S 10 D - 7 G - KS - 65.
Motor protection against overload
Quick-connect coupling to exchange dispersing tools easily
Wide selection of dispersing tools to suit your application
2+1 year after registering at 2+1
| Model |
T 10 Standard |
| Motor rating input |
125 W |
| Motor rating output |
75 W |
| Volume range min. (H2O) |
0.001 l |
| Volume range max. (H2O) |
0.1 l |
| Viscosity max. |
5000 mPas |
| Speed range |
8000 - 26000 rpm |
| Speed deviation |
6 % |
| Speed display |
scale |
| Speed control |
stepless |
| Noise without element |
65 dB(A) |
| Extension arm diameter |
8 mm |
| Extension arm length |
100 mm |
| Power-on time ON |
10 min |
| Power-on time OFF |
5 min |
| Timer |
no |
| Dimensions (W x H x D) |
63 x 210 x 57 mm |
| Weight |
0.4 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 30 |
| RS 232 interface |
no |
| Analog output |
no |
| Voltage |
220 - 240 / 100 - 120 V |
| Frequency |
50/60 Hz |
| Power input |
125 W |
