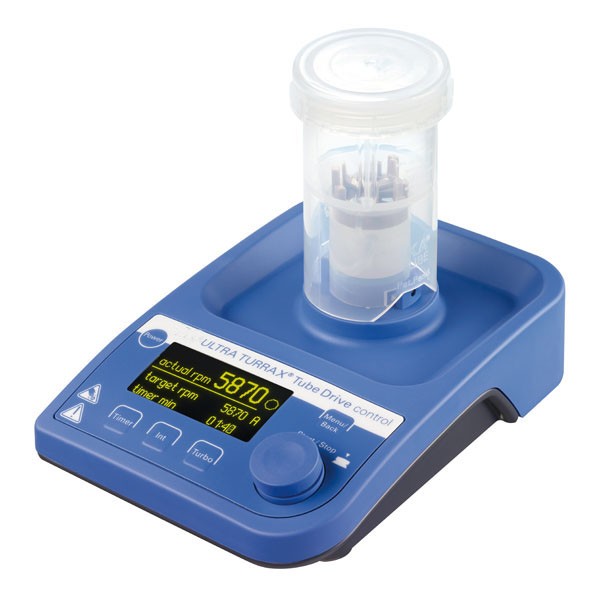

ULTRA-TURRAX® Tube Drive control
Unique and universal dispersing, stirring, homogenizing and grinding system with sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).
For research purposes only! Not suitable for dia- gnostic use (in accordance with the IVD Directive).
-
USB interface for control and documentation
-
Collecting tray for protection against leaking liquids
-
Simple and precise menu navigation thanks to the OLED display
-
Programmable sample conditions (library)
-
Adjustable reverse operation
-
Turbo-button for short time intensive mixing, homogenizing or grinding
-
Multilingual menu
-
Digital display for all functions
-
Disperse, stir, homogenize and grind using a single drive unit
-
No possibility of cross-contamination
-
Sealable disposable sample tubes
-
No cleaning required
-
High level of user safety
-
Suitable for individual use and use in series
-
Gamma-sterilized tubes
-
Tubes with pierceable membrane covers
-
Tubes with 2 - 15 ml and 15 - 50 ml
-
Reproducible tests
-
Patented
Application areas: Human medicine, pathology, veterinary medicine, animal hygiene insti-tutes, Foodstuffs testing laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biology, Chemistry, Cosmetics
Model |
ULTRA-TURRAX-T |
Motor rating input |
20 W |
Motor rating output |
17 W |
Viscosity max. |
5000 mPas |
Speed range |
400 - 8000 rpm |
Reversible direction of rotation |
yes |
Speed deviation |
3 % |
Speed control |
10 RPM Steps |
Speed display |
OLED |
Noise without element |
50 dB(A) |
Process type |
batch |
Timer |
yes |
Timer display |
OLED |
Dimensions (W x H x D) |
122 x 54 x 178 mm |
Weight |
0.9 kg |
Permissible ambient temperature |
5 - 40 °C |
Permissible relative humidity |
80 % |
Protection class according to DIN EN 60529 |
IP 20 |
USB interface |
yes |
Voltage |
100 - 240 V |
Frequency |
50/60 Hz |
Power input |
20 W |
DC Voltage |
24 V= |
Current consumption |
800 mA |
