ULTRA-TURRAX® Dispersing Instrument

More Views

ULTRA-TURRAX® Dispersing Instrument

Code:

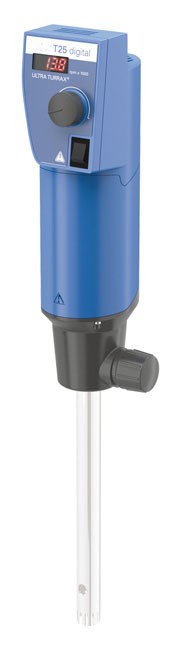

ULTRA-TURRAX®Dispersing Instrument
High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical research.
  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Stainless steel dispersing elements can be cleaned quickly and easily
  • Plastic disposable dispersing elements are available in two sizes
  • Error code display
  • Quiet operation
Motor protection against overload
Digital display for precise monitoring of set and actual speeds
Wide selection of dispersing tools to suit your application
Rotating knob for adjusting the speed
2+1 year after registering at 2+1
Model T 25 digital
Motor rating input 800 W
Motor rating output 500 W
Volume range min. (H2O) 0.001 l
Volume range max. (H2O) 2 l
Viscosity max. 5000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 1 %
Speed display LED
Speed control stepless
Noise without element 75 dB(A)
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Permissible ON time 100 %
Dimensions (W x H x D) 87 x 271 x 106 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
Analog output no
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 800 W

Description

Details

ULTRA-TURRAX®Dispersing Instrument
High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical research.
  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Stainless steel dispersing elements can be cleaned quickly and easily
  • Plastic disposable dispersing elements are available in two sizes
  • Error code display
  • Quiet operation
Motor protection against overload
Digital display for precise monitoring of set and actual speeds
Wide selection of dispersing tools to suit your application
Rotating knob for adjusting the speed
2+1 year after registering at 2+1
Model T 25 digital
Motor rating input 800 W
Motor rating output 500 W
Volume range min. (H2O) 0.001 l
Volume range max. (H2O) 2 l
Viscosity max. 5000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 1 %
Speed display LED
Speed control stepless
Noise without element 75 dB(A)
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Permissible ON time 100 %
Dimensions (W x H x D) 87 x 271 x 106 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
Analog output no
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 800 W
