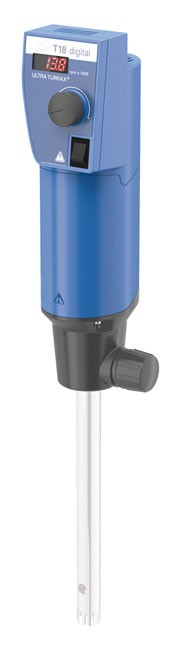

ULTRA-TURRAX®Dispersing InstrumentCompetitively priced dispersing instrument for volumes from 1 – 1500 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.-
Digital speed display -
Electronic speed control -
Electronic overload protection -
Stainless steel dispersing elements can be cleaned quickly and easily -
Plastic disposable dispersing elements are available in two sizes -
Error code display -
Quiet operation
Motor protection against overload
Digital display for precise monitoring of set and actual speeds2+1 year after registering at 2+1Rotating knob for adjusting the speedModel T 18 digital Motor rating input 500 W Motor rating output 300 W Volume range min. (H2O) 0.001 l Volume range max. (H2O) 1.5 l Viscosity max. 5000 mPas Speed range 3000 - 25000 rpm Speed deviation 1 % Speed display LED Speed control stepless Noise without element 75 dB(A) Extension arm diameter 13 mm Extension arm length 160 mm Process type batch Timer no Permissible ON time 100 % Dimensions (W x H x D) 87 x 271 x 106 mm Weight 2.5 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface no Analog output no Voltage 220 - 240 / 100 - 120 V Frequency 50/60 Hz Power input 500 W -
