ULTRA-TURRAX® Extremely Powerful Dispersing Instrument

ULTRA-TURRAX® Extremely Powerful Dispersing Instrument

More Views

ULTRA-TURRAX® Extremely Powerful Dispersing Instrument

Code:

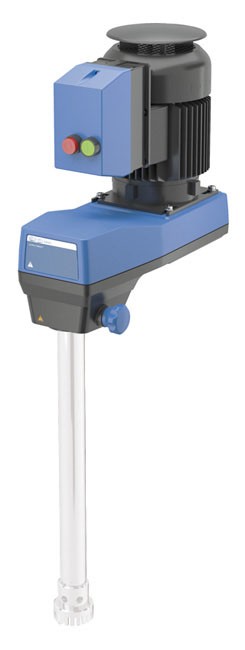

T 65 Basic ULTRA-TURRAX® Extremely Powerful Dispersing Instrument
Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations. A fixed speed of 7200 rpm enables users to work at a high circumferential speed even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

  • Electronic overload protection
  • Cables and plugs not included in the delivery
  • Plug-in connectors facilitate exchange of dispersing elements
  • Stainless steel dispersing elements for use under vacuum and pressure

Model T 65 Basic
Motor rating input 1800 W
Motor rating output 1500 W
Volume range min. (H2O) 2 l
Volume range max. (H2O) 50 l
Viscosity max. 5000 mPas
Speed max. 7200 rpm
Noise without element 75 dB(A)
Process type batch
Dimensions (W x H x D) 185 x 450 x 400 mm
Weight 26 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
Voltage 3 x 400 / 3 x 230 V
Frequency 50 Hz
Power input 2200 W

Description

Details

T 65 Basic ULTRA-TURRAX® Extremely Powerful Dispersing Instrument
Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations. A fixed speed of 7200 rpm enables users to work at a high circumferential speed even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

  • Electronic overload protection
  • Cables and plugs not included in the delivery
  • Plug-in connectors facilitate exchange of dispersing elements
  • Stainless steel dispersing elements for use under vacuum and pressure

Model T 65 Basic
Motor rating input 1800 W
Motor rating output 1500 W
Volume range min. (H2O) 2 l
Volume range max. (H2O) 50 l
Viscosity max. 5000 mPas
Speed max. 7200 rpm
Noise without element 75 dB(A)
Process type batch
Dimensions (W x H x D) 185 x 450 x 400 mm
Weight 26 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
Voltage 3 x 400 / 3 x 230 V
Frequency 50 Hz
Power input 2200 W
