Hotplate

Hotplate

More Views

Hotplate

Code:

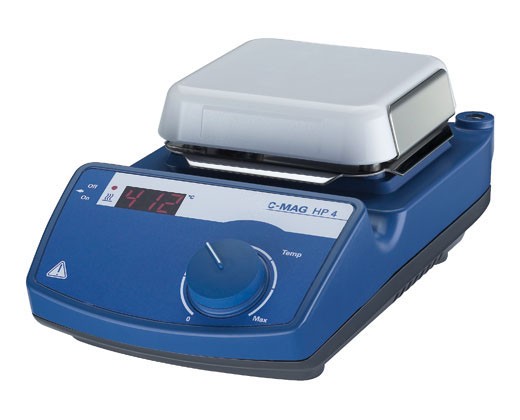

C-MAG HP 4 Hotplate
Hotplate made of ceramic glass which offers excellent chemical resistance.
  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!
  • Exact temperature setting via digital display (LED)
  • Digital error code display
  • Elevated control panel for protection against leaking liquids
Model C-MAG HP 4
Number of heating points 1
Heat output 250 W
Heating temperature range 50 - 500 °C
Heat control LED
Set temperature resolution 10 ±K
Volume max. 5 l
Heating rate heating plate 2.5 K/min
Set-up plate material ceramic
Set-up plate dimensions 100 x 100 mm
Dimensions (W x H x D) 150 x 105 x 260 mm
Weight 3 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 / 120 / 100 V
Frequency 50/60 Hz
Power input 255 W

Description

Details

C-MAG HP 4 Hotplate
Hotplate made of ceramic glass which offers excellent chemical resistance.
  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!
  • Exact temperature setting via digital display (LED)
  • Digital error code display
  • Elevated control panel for protection against leaking liquids
Model C-MAG HP 4
Number of heating points 1
Heat output 250 W
Heating temperature range 50 - 500 °C
Heat control LED
Set temperature resolution 10 ±K
Volume max. 5 l
Heating rate heating plate 2.5 K/min
Set-up plate material ceramic
Set-up plate dimensions 100 x 100 mm
Dimensions (W x H x D) 150 x 105 x 260 mm
Weight 3 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 / 120 / 100 V
Frequency 50/60 Hz
Power input 255 W
