- Description
-
Details

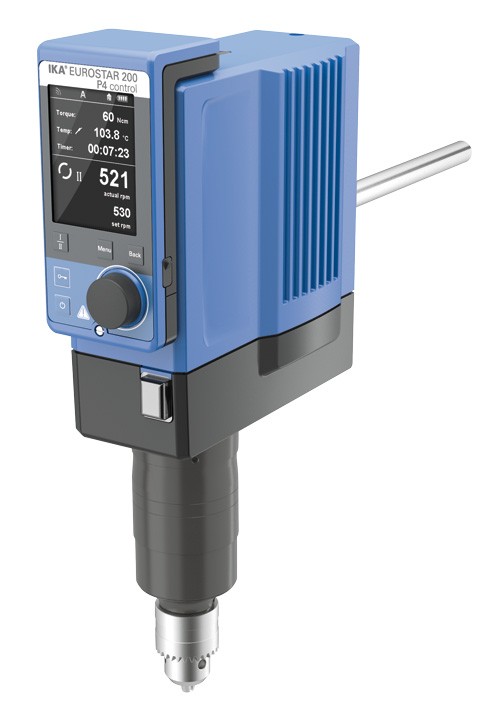

EUROSTAR 200 Control P4 Overhead StirrersDescription:Extremely powerful laboratory stirrer for highly viscous applications for quantities up to 100 l (H2O). It is designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/4 - 530 rpm (two speed ranges). The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.-
Multilingual TFT display -
Programmable functions -
Integrated temperature measurement -
Interval operation -
Timer function -
Adjustable safety circuit -
Locked function -
Infinitely adjustable speed -
Overload protection -
Short-term overload operation -
Slim casing -
Quiet operation -
Error code display -
H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Specifications:Model EUROSTAR 200 Control P4 Stirring quantity max. per stirring position (H2O) 100 l Motor rating input 134 W Motor rating output 76 W Motor principle Brushless DC Speed display TFT Speed range 0/4 - 530 rpm Reversible direction of rotation no Intermittent operation yes Viscosity max. 150000 mPas Output max. at stirring shaft 76 W Permissible ON time 100 % Torque max. at stirring shaft 660 Ncm torque I max. 660 Ncm torque II max. 130 Ncm Speed range I (50 Hz) 4 - 108 rpm Speed range II (50 Hz) 16 - 530 rpm Speed range I (60 Hz) 4 - 108 rpm Speed range II (60 Hz) 16 - 530 rpm Speed control stepless Setting accuracy speed 1 ±rpm Deviation of speed measurement n > 300rpm 1 ±% Deviation of speed measurement n < 300rpm 3 ±rpm Stirring element fastening chuck Connection for ext. temperature sensor PT1000 Temperature display yes Chuck range min. diameter 0.5 mm Chuck range max. diameter 10 mm Hollow shaft (push-through - when stopped) no Fastening on stand extension arm Extension arm diameter 16 mm Extension arm length 220 mm Torque display yes Speed control electronic Nominal torque 6.6 Nm Torque measurement trend deviation of torque measurement I 60 ±Ncm deviation of speed measurement II 10 ±Ncm Timer yes Timer display TFT Time setting range 1 - 6000 min Temperature measuring range min. -10 °C Temperature measuring range max. +350 °C Temperature measurement resolution 0.1 K Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K housing material alu-cast coating / thermoplastic polymer clean room qualified no explosion proofed no communication distance (depend onbuilding) max. 150 m Dimensions (W x H x D) 91 x 379 x 231 mm Weight 5.8 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 40 RS 232 interface yes USB interface yes Analog output no Voltage 230 / 100 - 115 V Frequency 50/60 Hz Power input 134 W -
- Additional Information
-
Additional Information
Code No - Reviews
-
