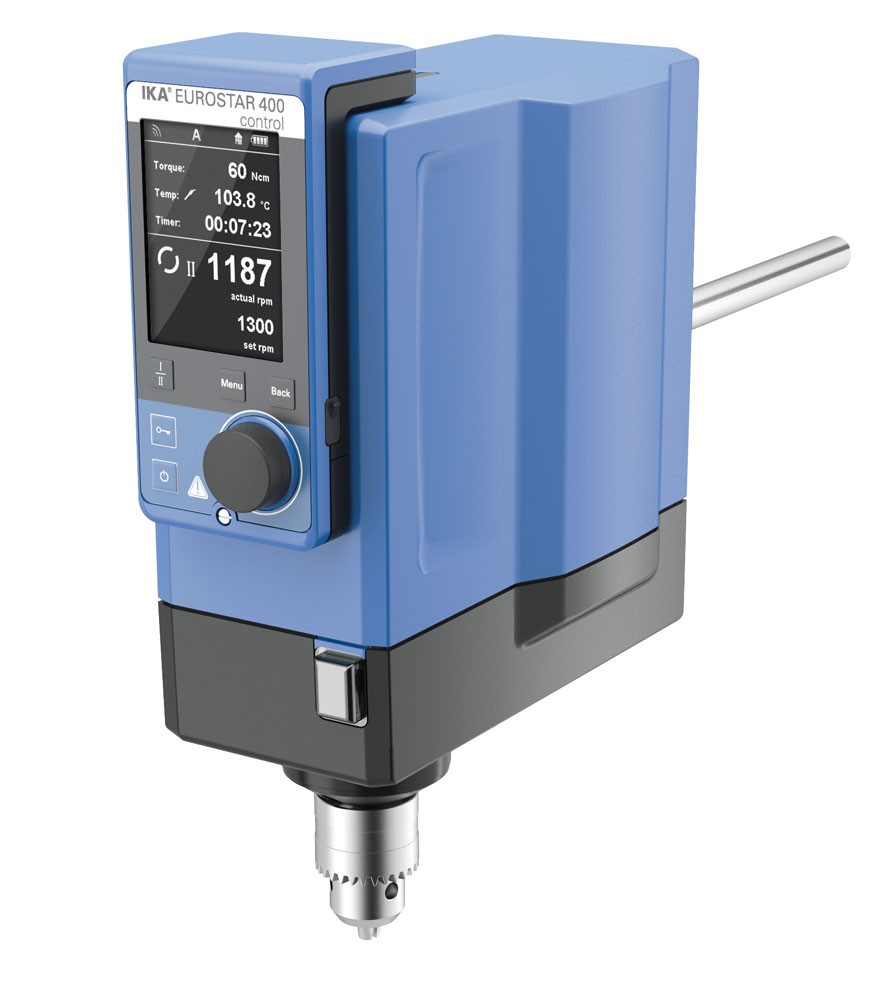

EUROSTAR 400 Control Overhead Stirrers
Description:
Powerful laboratory stirrer for high viscous applications and intensive mixing for quantities up to 150 l (H2O). It automatically adjusts the speed within the range of 0/6 – 2000 rpm (two speed ranges) through microprocessor controlled technology. The control stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes, as well as integrated safety circuits ensure automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft to desired speed is performed and variations are adjusted automatically. This ensures constant speed even with changes in viscosities of the sample.
-
Multilingual TFT display
-
Programmable functions
-
Integrated temperature measurement
-
Interval operation
-
Timer function
-
Adjustable safety circuit
-
Locked function
-
Infinitely adjustable speed
-
Push-through agitator shafts
-
Overload protection
-
Short-term overload operation
-
Slim casing
-
Quiet operation
-
Error code display
Specifications:
Model |
EUROSTAR 400 Control |
Stirring quantity max. per stirring position (H2O) |
150 l |
Motor rating input |
220 W |
Motor rating output |
176 W |
Motor principle |
Brushless DC |
Speed display |
TFT |
Speed range |
0/6 - 2000 rpm |
Reversible direction of rotation |
no |
Intermittent operation |
yes |
Viscosity max. |
100000 mPas |
Output max. at stirring shaft |
167 W |
Permissible ON time |
100 % |
Torque max. at stirring shaft |
400 Ncm |
torque I max. |
400 Ncm |
torque II max. |
80 Ncm |
Speed range I (50 Hz) |
6 - 400 rpm |
Speed range II (50 Hz) |
30 - 2000 rpm |
Speed range I (60 Hz) |
6 - 400 rpm |
Speed range II (60 Hz) |
30 - 2000 rpm |
Speed control |
stepless |
Setting accuracy speed |
1 ±rpm |
Deviation of speed measurement n > 300rpm |
1 ±% |
Deviation of speed measurement n < 300rpm |
3 ±rpm |
Stirring element fastening |
chuck |
Connection for ext. temperature sensor |
PT1000 |
Temperature display |
yes |
Plug-in coupling (Ø) |
10 mm |
Chuck range min. diameter |
0.5 mm |
Chuck range max. diameter |
10 mm |
Hollow shaft, inner diameter |
10.3 mm |
Hollow shaft (push-through - when stopped) |
yes |
Fastening on stand |
extension arm |
Extension arm diameter |
16 mm |
Extension arm length |
160 mm |
Torque display |
yes |
Speed control |
electronic |
Nominal torque |
4 Nm |
Torque measurement |
trend |
deviation of torque measurement I |
40 ±Ncm |
deviation of speed measurement II |
12 ±Ncm |
Timer |
yes |
Timer display |
TFT |
Time setting range |
1 - 6000 min |
Temperature measuring range min. |
-10 °C |
Temperature measuring range max. |
+350 °C |
Temperature measurement resolution |
0.1 K |
Accuracy of temperature measurement |
±0.05 + tolerance PT1000 (DIN IEC 751 Class A) K |
Limit deviation temperature sensor |
≤ ± (0.15 + 0.002xITI) K |
housing material |
alu-cast coating / thermoplastic polymer |
clean room qualified |
no |
explosion proofed |
no |
communication distance (depend onbuilding) max. |
150 m |
Dimensions (W x H x D) |
114 x 320 x 268 mm |
Weight |
8.2 kg |
Permissible ambient temperature |
5 - 40 °C |
Permissible relative humidity |
80 % |
Protection class according to DIN EN 60529 |
IP 40 |
RS 232 interface |
yes |
USB interface |
yes |
Analog output |
no |
Voltage |
230 / 115 / 100 V |
Frequency |
50/60 Hz |
Power input |
226 W |
