Code:

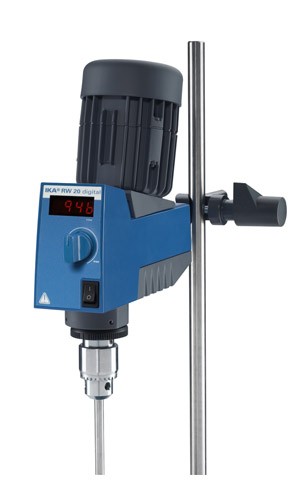

RW 20 Digital Overhead Stirrers

Description:

The bestseller in the laboratory:

Technical improvements on the trusted RW 20 series designs

Two speed ranges for universal use from 60 - 2.000 rpm

Push-through agitator shafts (only when stationary)

For stirring quantities of up to 20 l (H2O)

Specifications:

Model	RW 20 Digital
Stirring quantity max. per stirring position (H2O)	20 l
Motor rating input	70 W
Motor rating output	35 W
Speed display	LED
Speed range	60 - 2000 rpm
Viscosity max.	10000 mPas
Output max. at stirring shaft	26 W
Permissible ON time	100 %
Torque max. at stirring shaft	150 Ncm
Torque max. at stirring shaft at 60 1/min (overload)	300 Ncm
Torque max. at stirring shaft at 100 1/min	150 Ncm
Torque max. at stirring shaft at 1.000 1/min	24 Ncm
Speed range I (50 Hz)	60 - 500 rpm
Speed range II (50 Hz)	240 - 2000 rpm
Speed range I (60 Hz)	72 - 600 rpm
Speed range II (60 Hz)	288 - 2400 rpm
Speed control	stepless
Setting accuracy speed	1 ±rpm
deviation of speed measurement	30 ±rpm
Stirring element fastening	chuck
Temperature display	no
Chuck range min. diameter	0.5 mm
Chuck range max. diameter	10 mm
Hollow shaft, inner diameter	10.5 mm
Hollow shaft (push-through - when stopped)	yes
Fastening on stand	extension arm
Extension arm diameter	13 mm
Extension arm length	160 mm
Torque display	no
Speed control	mechanical
Nominal torque	1.5 Nm
Timer	no
Dimensions (W x H x D)	88 x 294 x 212 mm
Weight	3.1 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
RS 232 interface	no
USB interface	no
Analog output	no
Voltage	220 - 240 / 100 - 115 V
Frequency	50/60 Hz
Power input	72 W
