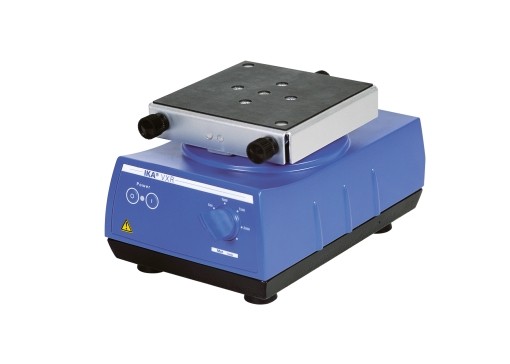

Optoelectronically Controlled Small Shaker

More Views

Code:

VXR Basic Vibrax® Shaker

Description:

Optoelectronically controlled small shaker with a very wide speed range (0 - 2200 rpm).

Specifications:

Model	VXR Basic
Type of movement	orbital
Shaker diameter	4 mm
Permissible shaking weight (incl. attachment)	2 kg
Motor rating input	35 W
Motor rating output	13.2 W
Permissible ON time	100 %
Speed min (adjustable)	100 rpm
Speed range	0 - 2200 rpm
Speed display	scale
Timer	no
Operating mode	continuous operation
Shaking table lock	no
Working with microtiter plates	no
Dimensions (W x H x D)	157 x 130 x 247 mm
Weight	6.1 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	no
Analog output	no
Voltage	220 - 240 / 100 - 120 V
Frequency	50/60 Hz
Power input	45 W

Description

VXR Basic Vibrax® Shaker

Description:

Optoelectronically controlled small shaker with a very wide speed range (0 - 2200 rpm).

Specifications:

Model	VXR Basic
Type of movement	orbital
Shaker diameter	4 mm
Permissible shaking weight (incl. attachment)	2 kg
Motor rating input	35 W
Motor rating output	13.2 W
Permissible ON time	100 %
Speed min (adjustable)	100 rpm
Speed range	0 - 2200 rpm
Speed display	scale
Timer	no
Operating mode	continuous operation
Shaking table lock	no
Working with microtiter plates	no
Dimensions (W x H x D)	157 x 130 x 247 mm
Weight	6.1 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	no
Analog output	no
Voltage	220 - 240 / 100 - 120 V
Frequency	50/60 Hz
Power input	45 W
