- Description
-
Details

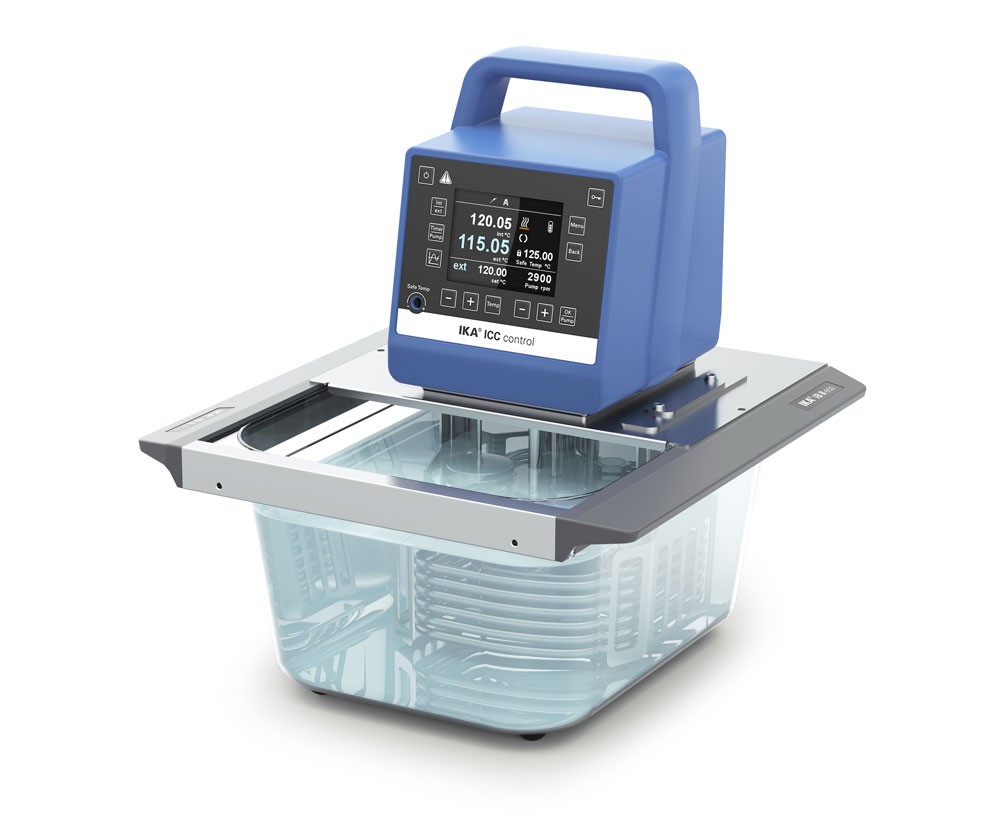

ICC Control ECO8 Temperature Control SystemIKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.
Package includes-
ICC control Compact Immersion Circulator -
IB 8 eco Plastic bath (size S) -
BS.ICC Small bridge
Bath opening: 188 x 105 mm
Immersion depth: 85 - 125 mm
Max. temperature in the plastic bath (“eco” series): 100°C (water only)
* Technical data relates to the temperature control instrument included in the packageModel ICC Control ECO8 Appliance type Compact immersion circulators Class designation acc. DIN 12876 III Identification according to DIN 12876 FL Heat output 2000 W Working temperature min. room temp. +10K @1000rpm °C Working temperature max. 150 °C Operating temperature min. (with external cooling) -20 °C Temperature display yes Temperature control PT 100 Working temperature sensor PT 100 Safety temperature sensor PT1000 Working temperature display TFT Safety temperature display TFT Temperature stability DIN 12876 0.01 ±K Connection for ext. temperature sensor PT 100 Display resolution 0.1 K Display for operation with ext. sensor yes Set temperature resolution 0.1 ±K Warning function optical yes Warning function acoustic yes Warning function excess temperature yes Warning function insufficient temperature no Adjustable safety circuit min. 0 °C Adjustable safety circuit max. 160 °C Sub-level protection yes Over-level protection yes Pump type Pressure- / suction pump Pump capacity adjustable yes Pump pressure max. (0 liters discharge flow) 0.3 bar Pressure pump (suction side) (0 liter flow) 0.2 bar Flow rate max. (0 bar back pressure) 18 l/min Bath depth min. 150 mm Calibration option yes Appliance fastener clamp Technical data complies with the standard DIN 12876 Permissible ON time 100 % Dimensions (W x H x D) 145 x 340 x 200 mm Weight 3.75 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 21 RS 232 interface yes USB interface yes Voltage 230 / 115 V Frequency 50/60 Hz Power input 2100 W -
- Additional Information
-
Additional Information
Code No - Reviews
-
