Temperature Control System

Temperature Control System

More Views

Temperature Control System

Code:

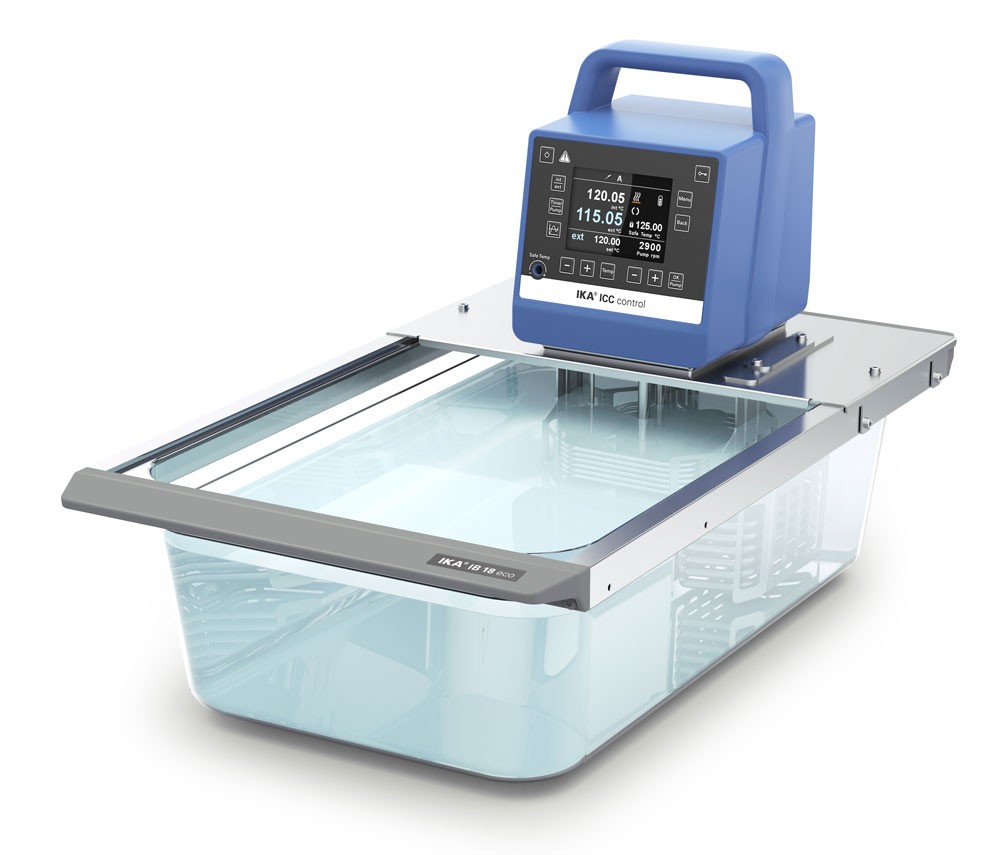

ICC control eco 18 Temperature Control System
IKA facilitates the configuration of your Temperature Control System by offering “ready for connection“ packages with all necessary accessories.

 Package includes
  • ICC control compact immersion circulator
  • IB 18 eco plastic bath (size L)
  • BL.ICC large bridge

 Bath opening: 245 x 305 mm
 Immersion depth: 85 - 125 mm

 Max. temperature in the plastic bath (“eco” series): 100°C (water only)

 * Technical data relates to the temperature control instrument included in the package

Model ICC control eco 18
Appliance type Compact immersion circulators
Class designation acc. DIN 12876 III
Identification according to DIN 12876 FL
Heat output 2000 W
Working temperature min. room temp. +10K @1000rpm °C
Working temperature max. 150 °C
Operating temperature min. (with external cooling) -20 °C
Temperature display yes
Temperature control PT 100
Working temperature sensor PT 100
Safety temperature sensor PT1000
Working temperature display TFT
Safety temperature display TFT
Temperature stability DIN 12876 0.01 ±K
Connection for ext. temperature sensor PT 100
Display resolution 0.1 K
Display for operation with ext. sensor yes
Set temperature resolution 0.1 ±K
Warning function optical yes
Warning function acoustic yes
Warning function excess temperature yes
Warning function insufficient temperature no
Adjustable safety circuit min. 0 °C
Adjustable safety circuit max. 160 °C
Sub-level protection yes
Over-level protection yes
Pump type Pressure- / suction pump
Pump capacity adjustable yes
Pump pressure max. (0 liters discharge flow) 0.3 bar
Pressure pump (suction side) (0 liter flow) 0.2 bar
Flow rate max. (0 bar back pressure) 18 l/min
Bath depth min. 150 mm
Calibration option yes
Appliance fastener clamp
Technical data complies with the standard DIN 12876
Permissible ON time 100 %
Dimensions (W x H x D) 145 x 340 x 200 mm
Weight 3.75 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 230 / 115 V
Frequency 50/60 Hz
Power input 2100 W

Description

Details

ICC control eco 18 Temperature Control System
IKA facilitates the configuration of your Temperature Control System by offering “ready for connection“ packages with all necessary accessories.

 Package includes
  • ICC control compact immersion circulator
  • IB 18 eco plastic bath (size L)
  • BL.ICC large bridge

 Bath opening: 245 x 305 mm
 Immersion depth: 85 - 125 mm

 Max. temperature in the plastic bath (“eco” series): 100°C (water only)

 * Technical data relates to the temperature control instrument included in the package

Model ICC control eco 18
Appliance type Compact immersion circulators
Class designation acc. DIN 12876 III
Identification according to DIN 12876 FL
Heat output 2000 W
Working temperature min. room temp. +10K @1000rpm °C
Working temperature max. 150 °C
Operating temperature min. (with external cooling) -20 °C
Temperature display yes
Temperature control PT 100
Working temperature sensor PT 100
Safety temperature sensor PT1000
Working temperature display TFT
Safety temperature display TFT
Temperature stability DIN 12876 0.01 ±K
Connection for ext. temperature sensor PT 100
Display resolution 0.1 K
Display for operation with ext. sensor yes
Set temperature resolution 0.1 ±K
Warning function optical yes
Warning function acoustic yes
Warning function excess temperature yes
Warning function insufficient temperature no
Adjustable safety circuit min. 0 °C
Adjustable safety circuit max. 160 °C
Sub-level protection yes
Over-level protection yes
Pump type Pressure- / suction pump
Pump capacity adjustable yes
Pump pressure max. (0 liters discharge flow) 0.3 bar
Pressure pump (suction side) (0 liter flow) 0.2 bar
Flow rate max. (0 bar back pressure) 18 l/min
Bath depth min. 150 mm
Calibration option yes
Appliance fastener clamp
Technical data complies with the standard DIN 12876
Permissible ON time 100 %
Dimensions (W x H x D) 145 x 340 x 200 mm
Weight 3.75 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 230 / 115 V
Frequency 50/60 Hz
Power input 2100 W
