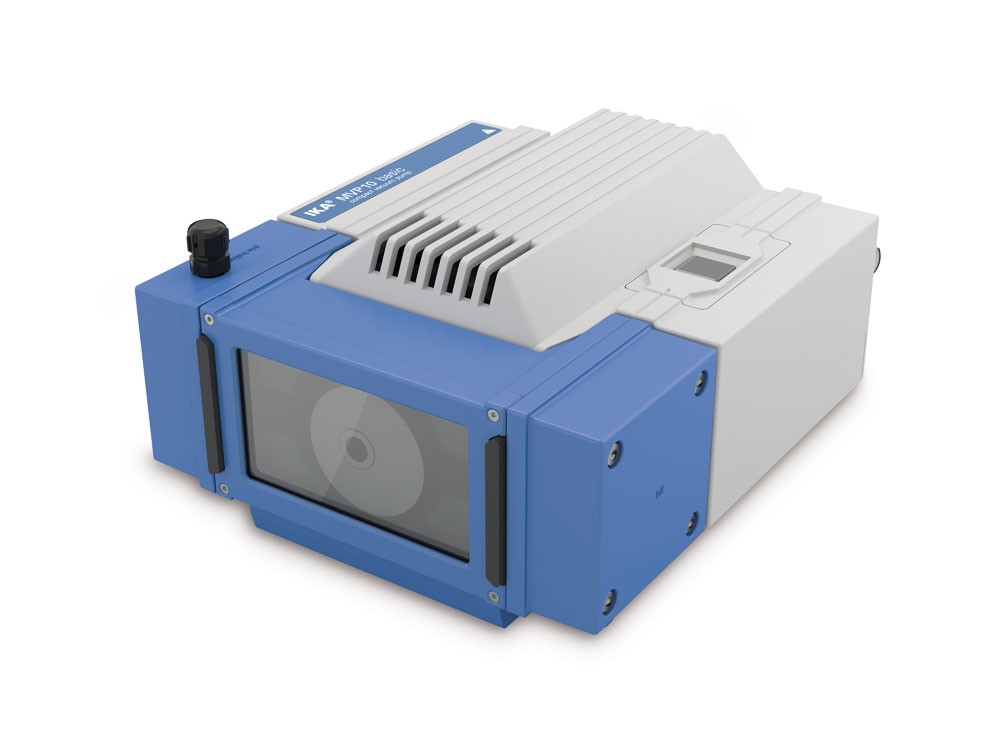

Basic Vacuum Pump

Basic Vacuum Pump

More Views

Basic Vacuum Pump

Code:
Basic Vacuum Pump
Description :
For dry, oil-free applications
  • Slimline, compact design and long service life
  • Straightforward servicing and simple maintenance
  • Diaphragm pump that is highly resistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compounds
Technical Data :
Model No. MVP 10
Pump rate max. (50/60Hz) 1.7 m³/h
Pump rate max. (50/60Hz) 28.3 l/min
Final pressure without gas ballast 7 mbar
Final pressure with gas ballast 15 mbar
Suction levels 2
Cylinder 2
Connection diameter suction side 10 mm
Connection diameter pressure side 10 mm
Gas ballast valve yes
Input pressure min. 7 mbar
Input pressure max. 1050 mbar
Speed range 1380 - 1680 rpm
Nominal speed 1380 rpm
Vacuum sensor no
Venting valve no
Condensate trap no
Emission condenser no
Noise at low. pressure 65 dB(A)
Dimensions (W x H x D) 245 x 155 x 320 mm
Weight 11.5 kg
Permissible ambient temperature 10 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
RS 232 interface no
USB interface no
Analog output no
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 180 W

Description

Details

Basic Vacuum Pump
Description :
For dry, oil-free applications
  • Slimline, compact design and long service life
  • Straightforward servicing and simple maintenance
  • Diaphragm pump that is highly resistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compounds
Technical Data :
Model No. MVP 10
Pump rate max. (50/60Hz) 1.7 m³/h
Pump rate max. (50/60Hz) 28.3 l/min
Final pressure without gas ballast 7 mbar
Final pressure with gas ballast 15 mbar
Suction levels 2
Cylinder 2
Connection diameter suction side 10 mm
Connection diameter pressure side 10 mm
Gas ballast valve yes
Input pressure min. 7 mbar
Input pressure max. 1050 mbar
Speed range 1380 - 1680 rpm
Nominal speed 1380 rpm
Vacuum sensor no
Venting valve no
Condensate trap no
Emission condenser no
Noise at low. pressure 65 dB(A)
Dimensions (W x H x D) 245 x 155 x 320 mm
Weight 11.5 kg
Permissible ambient temperature 10 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
RS 232 interface no
USB interface no
Analog output no
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 180 W
