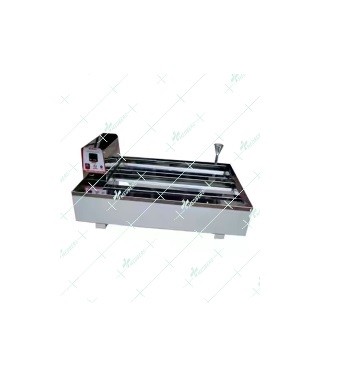

Inspissator -278 (WJ)

Application

•  Inspissator is the most convenient and effective equipment specially designed to produce large batches of uniform tuberculosis culture medium four to six times per day.

Construction

• Outer wall is made of powder coated CRC sheet.
• Inner tray and tank are made of polished stainless steel (SS-304 grade).
• Operating temperature range from ambient +5C to 90C.
• Fitted with a circulator pump for temperature uniformity.
• Slanting position for inspissations are provided in series of steps.

Technical Specifications:

• Standard Temperature Range: 85⁰C
• Operating Temperature Range: Ambient +5 to 90⁰C
• Temperature Controller: Microprocessor Based Digital Temperature Indicator cum Controller with LED display for Set Value (SV) & Process Value (PV).
• Temperature Display: LED Display
• Display Resolution: 0.1⁰C
• Uniformity : Tray Surface: +0.7⁰C
• Heater Power: 1.4 KW
• Heat Up Rate: 20 to 85⁰C (within 3.5hr)
• Over Temperature Protection: Fixed cut-out

Ordering Information:
