rotarus^® flow 100

Peristaltic pump for continuous delivery in speed ranges from 5 to 500 revolutions per minuter

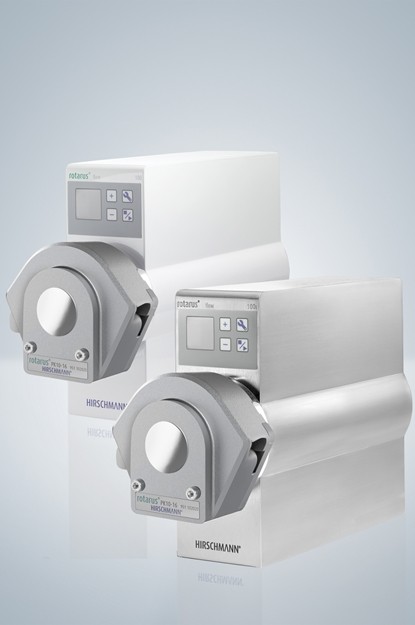

rotarus^® flow 100 is a comfortable, rapid delivery pump for high flow rates with control options for velocity and flow speed. Performance class with 100 Watt ensures rapid delivery in speed ranges from 5 to 500 revolutions per minute. Housings are available with a white powder coating (protection class IP54) and inox stainless steel design (rotarus^® flow 100i, protection class IP65). RFID technology is used in the rotarus^® flow to detect the pump head. The model also has automatic blockage detection and hose rupture monitoring. A control panel for the most important functions is integrated directly into the housing. In addition, rotarus^® flow is equipped with an external control unit with touchscreen. The pump head connection technology ensures rapid handling.

Overview of details

• Changeable pump heads, single and multichannel design
• Rapid tool-free changing of pump heads
• Automatic pump head and hose detection with RFID technology
• Control panel located directly on pump housing
• TFT touchscreen with user-friendly menu
• Calibratable
• Method memory
• Operation with 24 V DC
• USB and RS232 interface for PC link using interface (available as accessory)
• Pump heads from other manufacturers can be fitted without difficulty using an adapter
• Comprehensive accessory range

Ordering Information with Technical Specifications:
