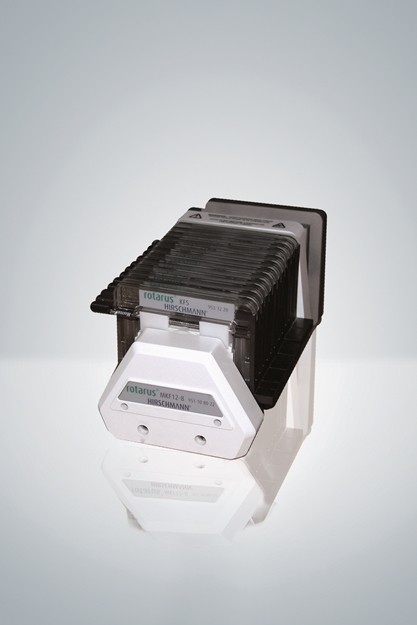

rotarus® MKF 4-8, Multi-Channel pump head

More Views

Code:

rotarus^® MKF 4-8, Multi-Channel pump head

Ordering Information with Technical Specifications:

Catalogue No.	951108020 (rotarus^® MKF 4-8)
Characteristics	Simple tube insertion
	Automatic tube fixing
	Adjustable contact pressure
	Stainless steel rotor
Functions	4 (configured with cassettes no. 953 12 20)
Functions	With tube cassettes for stopper tubes for ID 0.19 mm – ID 2.79 mm
Rollers	8 Rulon® rollers
Housing	Polysulfon (PSU) white
Dimensions (L / W / H in mm)	140 / 110 / 110
Weight	2.1 kg
Operation Temperature	0 – 40°C
Range of speeds	0.2 – 500 l/min
Head and tube detection through RFID	Yes
Safety	Tubing bed open/closed monitoring
Flow rate range**
Series 30	0.036 – 82.1 ml/min
Series 40	0.011 – 65.7 ml/min
Series 50	0.0009 – 22.7 ml/min
Series 80	0.20 – 82.1 ml/min
Series 100	0.021 – 82.1 ml/min

Description

rotarus^® MKF 4-8, Multi-Channel pump head

Ordering Information with Technical Specifications:

Catalogue No.	951108020 (rotarus^® MKF 4-8)
Characteristics	Simple tube insertion
	Automatic tube fixing
	Adjustable contact pressure
	Stainless steel rotor
Functions	4 (configured with cassettes no. 953 12 20)
Functions	With tube cassettes for stopper tubes for ID 0.19 mm – ID 2.79 mm
Rollers	8 Rulon® rollers
Housing	Polysulfon (PSU) white
Dimensions (L / W / H in mm)	140 / 110 / 110
Weight	2.1 kg
Operation Temperature	0 – 40°C
Range of speeds	0.2 – 500 l/min
Head and tube detection through RFID	Yes
Safety	Tubing bed open/closed monitoring
Flow rate range**
Series 30	0.036 – 82.1 ml/min
Series 40	0.011 – 65.7 ml/min
Series 50	0.0009 – 22.7 ml/min
Series 80	0.20 – 82.1 ml/min
Series 100	0.021 – 82.1 ml/min
