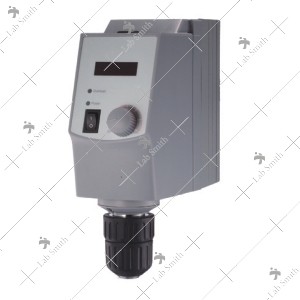

LED Digital Overhead Stirrer

More Views

LED Digital Overhead Stirrer

Code:
LED Digital Overhead Stirrer
Features
  • RS232 interface- PC can control and document all operation values
  • LED display
  • Safety circuits allow for safe stop function in overload conditions
  • Brushless DC motor
Advantages for the user
  • Digital display
  • Maintenance free motor
  • Very safe
  • Remote Control
Specifications:
• High reliability and outstanding performance
• A wide range of speeds from 50 to 2200rpm
• Brushless DC motor for long life, maintenance free and explosion proof
• LED display for precise monitoring of actual speed
• Safety circuits allow for safe stop function in anti-stall or overload conditions
 Catalogue No LSOS40-S
 Max. stirring quantity ( H2O )  40L
 Motor type  brushless DC motor
 Motor input power  120W
 Motor output power  100W
 Voltage  100-240V, 50/60 Hz
 Power  130W
 Speed range  50-2200rpm
 Speed display accuracy  ±3rpm
 Speed display  LED
 Overload protection display  LED lights
 Max. torque  60Ncm
 Viscosity max.  50000mPas
 Chuck range diameter  0.5-10mm
 Dimension [W × H × D]  83 × 220 × 186mm
 Weight  2.8kg
 Protection class  IP42
 Permissible ambient temperature and humidity  5-40℃, 80%

Description

Details

LED Digital Overhead Stirrer
Features
  • RS232 interface- PC can control and document all operation values
  • LED display
  • Safety circuits allow for safe stop function in overload conditions
  • Brushless DC motor
Advantages for the user
  • Digital display
  • Maintenance free motor
  • Very safe
  • Remote Control
Specifications:
• High reliability and outstanding performance
• A wide range of speeds from 50 to 2200rpm
• Brushless DC motor for long life, maintenance free and explosion proof
• LED display for precise monitoring of actual speed
• Safety circuits allow for safe stop function in anti-stall or overload conditions
 Catalogue No LSOS40-S
 Max. stirring quantity ( H2O )  40L
 Motor type  brushless DC motor
 Motor input power  120W
 Motor output power  100W
 Voltage  100-240V, 50/60 Hz
 Power  130W
 Speed range  50-2200rpm
 Speed display accuracy  ±3rpm
 Speed display  LED
 Overload protection display  LED lights
 Max. torque  60Ncm
 Viscosity max.  50000mPas
 Chuck range diameter  0.5-10mm
 Dimension [W × H × D]  83 × 220 × 186mm
 Weight  2.8kg
 Protection class  IP42
 Permissible ambient temperature and humidity  5-40℃, 80%
