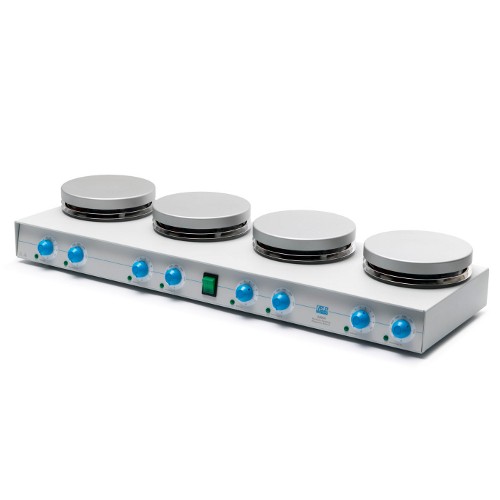

AM4 & AM4X Aluminum Hot Plate Stirrer, Multiple Positions

More Views

Code:

AM4 & AM4X Aluminum Hot Plate Stirrer, Multiple Positions

Multiple-position hot plate stirrer with four separately controlled stirring plates.

Excellent Performance

Uniform heat distribution with coated aluminum alloy heating plate
Excellent resistance to chemicals
Maximum temperature 370 °C
Accepts up to 4 x 15 liter flasks
Electronic speed regulation up to 1500 rpm
Excellent speed control, even at low speeds
SpeedServo™ ensures constant speed even when the viscosity changes
High power PCM-type driving magnet
4 heating stirrers, independently controlled
Distance between stirring position centres: 186 mm
Accept up to Ø 155 mm flasks
AM4, stand-alone
AM4X, with the possibility to be connected to 4 VTF Digital Thermoregulators

Technical Specifications:

GENERAL FEATURES
Construction material:	epoxy painted metal structure
Heating plate:	aluminium alloy coated with a special protection
Heating plate diameter:	155 mm
Stirring positions:	4
Power:	2550 W
Weight:	8.3 Kg (18.2 lb)
Dimensions (WxHxD):	715x115x246 mm (28.1x4.5x9.7 in)

PERFORMANCE
Electronic speed control:	up to 1500 rpm for each stirring position
Temperature regulation:	from room temp. to 370 °C for each stirring position
Stirring volume (H2O):	up to 15 liters (x4)
Stirring system:	high-power driving magnet type ''PCM''operated by a mono-phase motor for continuous operation
Counter-reaction:	constant speed

Ordering Information:

Description

AM4 & AM4X Aluminum Hot Plate Stirrer, Multiple Positions

Multiple-position hot plate stirrer with four separately controlled stirring plates.

Excellent Performance

Uniform heat distribution with coated aluminum alloy heating plate
Excellent resistance to chemicals
Maximum temperature 370 °C
Accepts up to 4 x 15 liter flasks
Electronic speed regulation up to 1500 rpm
Excellent speed control, even at low speeds
SpeedServo™ ensures constant speed even when the viscosity changes
High power PCM-type driving magnet
4 heating stirrers, independently controlled
Distance between stirring position centres: 186 mm
Accept up to Ø 155 mm flasks
AM4, stand-alone
AM4X, with the possibility to be connected to 4 VTF Digital Thermoregulators

Technical Specifications:

GENERAL FEATURES
Construction material:	epoxy painted metal structure
Heating plate:	aluminium alloy coated with a special protection
Heating plate diameter:	155 mm
Stirring positions:	4
Power:	2550 W
Weight:	8.3 Kg (18.2 lb)
Dimensions (WxHxD):	715x115x246 mm (28.1x4.5x9.7 in)

PERFORMANCE
Electronic speed control:	up to 1500 rpm for each stirring position
Temperature regulation:	from room temp. to 370 °C for each stirring position
Stirring volume (H2O):	up to 15 liters (x4)
Stirring system:	high-power driving magnet type ''PCM''operated by a mono-phase motor for continuous operation
Counter-reaction:	constant speed

Ordering Information:
