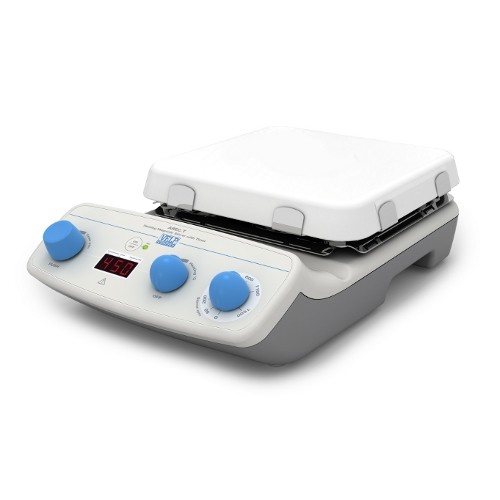

AREC.T Digital Ceramic Hot Plate Stirrer, with Timer

More Views

AREC.T Digital Ceramic Hot Plate Stirrer, with Timer

Code:

AREC.T Digital Ceramic Hot Plate Stirrer, with Timer

Powerful digital, square hot plate stirrer that has a built-in programmable timer up to 999 minutes with automatic switch off.

Quality Performance

  • Excellent resistance to chemicals scratches and surface abrasions
  • Maximum temperature 550 °C
  • Accepts up to 15 liter flasks
  • Electronic speed regulation up to 1500 rpm
  • SpeedServo™ ensures constant speed even when the viscosity changes
  • Temperature and time digitally settable
  • Timing to 999 minutes with automatic heat and stirring shut-off possible
  • Excellent speed control, even at low speed
  • White ceramic plate ideal for color change observation
  • Metal vessels can be used on the ceramic plate
  • Low profile design for a heated model
  • Hot plate warning displayed while cooling to below 50 °C
  • Control panel is separated from the heating plate
  • IP 42 protection with die-cast body
  • Protection from liquid spills with run-off groove
  • Ceramic heating plate easy to clean
  • Technopolymer casing resists chemicals, scratches and surface abrasions
  • Inclined control panel for easy access and visibility
  • High visibility LED display of temperature
  • High power PCM-type driving magnet
  • Precise Results
  • Practical Solution
  • High Safety Standards
  • Convenient Format

Technical Specifications:

GENERAL FEATURES
Construction material: technopolymer structure
Heating plate: ceramic material
Dimensions of the heating plate: 180x180 mm (7.9x7.9 in)
Set temperature visualization: digital display LED
Power: 800 W
Weight: 3.3 Kg (7.3 lb)
Dimension (WxHxD): 203x94x344 mm (8.0x3.7x13.5 in)

PERFORMANCE
Electronic speed regulation: up to 1500 rpm
Electronic temperature control: from room temp. to 550 °C
Stirring volume (H2O): up to 15 liters
Stirring system: high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation
Programmable timer: up to 999 minutes with automatic switch off
Protection rating CEI EN 60529: IP 42
Automatic stop of the heating plate: possible
Automatic stop of the stirring function: possible
Counter-reaction: constant speed
"Hot Plate Warning" whenever the top plate temperature is over 50 °C



Ordering Information:

Catalogue No. Description Power Supply
F20500051 AREC.T 230V / 50-60Hz
F20510051 AREC.T 115V / 60Hz
