- Description
-
Details

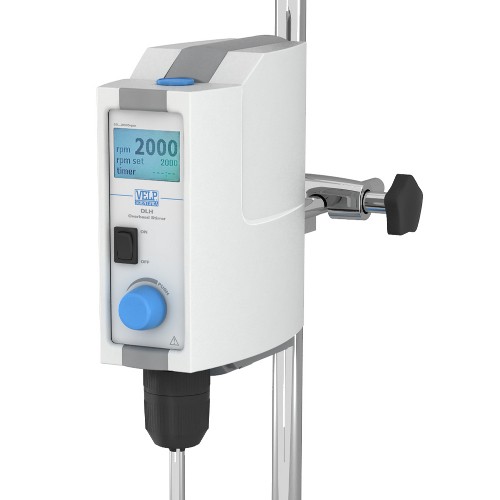

DLH Digital Overhead Stirrer
Digital overhead stirrer for medium-high viscosity liquids with bright display.
Fully Informed
- Extremely bright and easy-to-read display
- All set and actual parameter values are displayed in parallel
- Information includes set speed, real speed, torque and timer
- Operating time can be set up to 999:59 minutes; automatic switch off.
- SpeedServo™ ensures constant speed even when the viscosity changes
- Electronic speed regulation from 50 to 2000 rpm
- Can stir up to 40 liters of water
- Maximum torque of 80 Ncm
- Will stir liquids up to 50 000 mPa*s viscosity
- Soft start to prevent splashes and the creation of bubbles
- Technopolymer structure prevents any possible rust
- Optimum chemical resistance and enhanced handling
- Long life, robust motor
- Automatically stops if blocked – no burn-out or damage
- Overload, over-current and over-temperature protection
- Sealed to IP 40 standard
- Hand-tightened chuck; no tools required
- Universal voltage / frequency model
- Outstanding Performance
- Robust Design
- Safety Above All
- Convenient Operation
Technical Specifications:
GENERAL FEATURES Construction material: technopolymer and epoxy painted aluminum alloy Chuck range: 1 - 10 mm Visualization of set speed: display LCD Electronic protection rating CEI EN 60529: IP 40 Power: 190 W Weight: 3.0 Kg Dimensions (WxHxD): 80x230x196 mm PERFORMANCE Electronic speed regulation: 50 - 2000 rpm Stirring volume max (H2O): 40 liters Max viscosity: 50000 (mPa*s)* Torque max: 80 Ncm Allowed room temperature: 0 - 40 °C (*) mPa.s = 1 centipoise Ordering Information:
Catalogue No. Description Power Supply F201A0157 DLH 110-230V / 50-60Hz ±10% - Additional Information
-
