- Description
-
Details

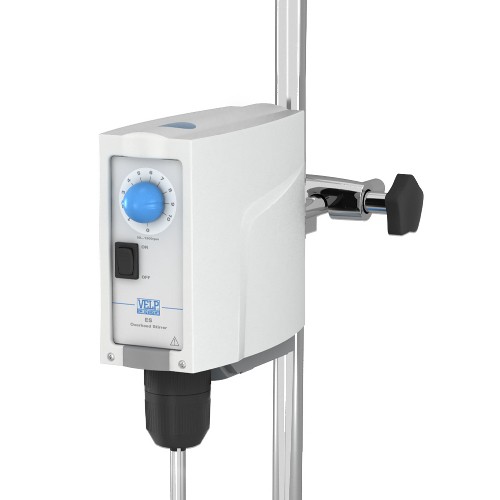

ES Overhead Stirrer
Overhead stirrer for low viscosity liquids.
Excellent Performance
- Electronic speed regulation up to 1300 rpm
- Can stir up to 15 liters of water
- Maximum torque of 15 Ncm
- Will stir liquids up to 1000 mPa*s viscosity
- Soft start to prevent splashes and the creation of bubbles
- Technopolymer structure prevents any possible rust
- Optimum chemical resistance and enhanced handling
- Long life, robust motor
- Automatically stops if blocked – no burn-out or damage
- Overload, over-current and over-temperature protection
- Sealed to IP 40 standard
- Hand-tightened chuck; no tools required
- Universal voltage / frequency model
- Rugged Design
- Safety Incorporated
- Convenient Operation
Technical Specifications:
GENERAL FEATURES Construction material: technopolymer Stirring speed rpm: graduated scale Chuck range hole: 1 - 10 mm Electronic protection rating CEI EN 60529: IP 40 Power: 30 W Weight: 1.3 Kg (2.8 lb) Dimensions (WxHxD): 80x160x200 mm (3.1x6.3x7.9 in) PERFORMANCE Stirring speed: 50 - 1300 rpm Stirring volume max (H2O): 15 liters Max viscosity: 1000 (mPa*s)* Torque max: 15 Ncm Allowed room temperature: 0 - 40 °C (*) mPa.s = 1 Centipoise Ordering Information:
Catalogue No. Description Power Supply F201A0152 ES 110-230V / 50-60Hz ±10% - Additional Information
-
