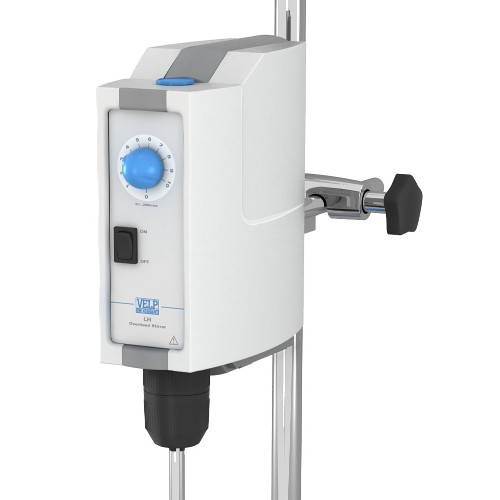

LH Overhead Stirrer

Code:

LH Overhead Stirrer

Overhead stirrer for medium-high viscosity liquids.

Advanced Performance

  • Electronic speed regulation from 50 to 2000 rpm
  • Can stir up to 40 liters of water
  • Maximum torque of 80 Ncm
  • Will stir liquids up to 50 000 mPa*s viscosity
  • Soft start to prevent splashes and the creation of bubbles
  • Technopolymer structure prevents any possible rust
  • Optimum chemical resistance and enhanced handling
  • Long life, robust motor
  • Automatically stops if blocked – no burn-out or damage
  • Overload, over-current and over-temperature protection
  • Sealed to IP 40 standard
  • Hand-tightened chuck; no tools required
  • Universal voltage / frequency model
  • Resistant Design
  • Built-in Safety
  • Easy to Use

Technical Specifications:

GENERAL FEATURES
Construction material: technopolymer and epoxy painted aluminum alloy
Visualization of effective speed: graduated scale (LCD display on DLH)
Chuck range: 1 - 10 mm
Electronic protection rating CEI EN 60529: IP 40
Power: 190 W
Weight: 2.9 Kg
Dimensions (WxHxD): 80x230x196 mm

PERFORMANCE
Stirring speed: 50 - 2000 rpm
Stirring volume max (H2O): 40 liters
Max viscosity: 50000 (mPa*s)*
Torque max: 80 Ncm
Allowed room temperature: 0 - 40 °C

(*) mPa.s = 1 centipoise



Ordering Information:

Catalogue No. Description Power Supply
F201A0156 LH 110-230V / 50-60Hz ±10%
Description

Details

LH Overhead Stirrer

Overhead stirrer for medium-high viscosity liquids.

Advanced Performance

  • Electronic speed regulation from 50 to 2000 rpm
  • Can stir up to 40 liters of water
  • Maximum torque of 80 Ncm
  • Will stir liquids up to 50 000 mPa*s viscosity
  • Soft start to prevent splashes and the creation of bubbles
  • Technopolymer structure prevents any possible rust
  • Optimum chemical resistance and enhanced handling
  • Long life, robust motor
  • Automatically stops if blocked – no burn-out or damage
  • Overload, over-current and over-temperature protection
  • Sealed to IP 40 standard
  • Hand-tightened chuck; no tools required
  • Universal voltage / frequency model
  • Resistant Design
  • Built-in Safety
  • Easy to Use

Technical Specifications:

GENERAL FEATURES
Construction material: technopolymer and epoxy painted aluminum alloy
Visualization of effective speed: graduated scale (LCD display on DLH)
Chuck range: 1 - 10 mm
Electronic protection rating CEI EN 60529: IP 40
Power: 190 W
Weight: 2.9 Kg
Dimensions (WxHxD): 80x230x196 mm

PERFORMANCE
Stirring speed: 50 - 2000 rpm
Stirring volume max (H2O): 40 liters
Max viscosity: 50000 (mPa*s)*
Torque max: 80 Ncm
Allowed room temperature: 0 - 40 °C

(*) mPa.s = 1 centipoise



Ordering Information:

Catalogue No. Description Power Supply
F201A0156 LH 110-230V / 50-60Hz ±10%
