- Description
-
Details

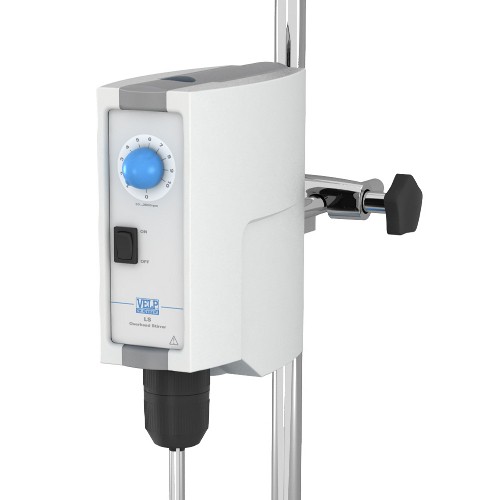

LS Overhead Stirrer
Overhead stirrer for low-medium viscosity liquids.
Advanced Performance
- Electronic speed regulation from 50 to 2000 rpm
- Can stir up to 25 liters of water
- Maximum torque of 40 Ncm
- Will stir liquids up to 25 000 mPa*s viscosity
- Soft start to prevent splashes and the creation of bubbles
- Technopolymer structure prevents any possible rust
- Optimum chemical resistance and enhanced handling
- Long life, robust motor
- Automatically stops if blocked – no burn-out or damage
- Overload, over-current and over-temperature protection
- Sealed to IP 40 standard
- Hand-tightened chuck; no tools required
- Universal voltage / frequency model
- Rugged Design
- Safety Incorporated
- Convenient Operation
Technical Specifications:
GENERAL FEATURES Construction material: technopolymer and epoxy painted aluminum alloy Visualization of effective speed: graduated scale Chuck range: 1 - 10 mm Electronic protection rating CEI EN 60529: IP 40 Power: 120 W Weight: 2.3 Kg (5.0 lb) Dimension (WxHxD): 80x215x196 mm (3.1x8.5x7.7 in) PERFORMANCE Stirring speed: 50 - 2000 rpm Stirring volume max (H2O): 25 liters Max viscosity: 25000 (mPa*s)* Torque max: 40 Ncm Allowed room temperature: 0 - 40 °C (*) mPa.s = 1 centipoise Ordering Information:
Catalogue No. Description Power Supply F201A0151 LS 110-230V / 50-60Hz ±10% SA201A0151 LS - Package 110-230V / 50-60Hz ±10% - Additional Information
-
