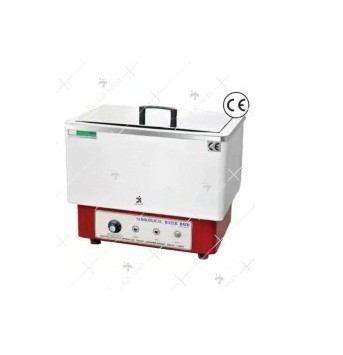

Serological Water Bath -273

Code:

Serological Water Bath -273

Applications & Construction Features

Ideal for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceuticals or Industrial Applications.
Microprocessor Based PID Digital Temperature Indicator-cum-Controller maintains maximum temperature accuracy.
User's Self-compensation function to control difference between real temperature and indicated temperature.
Stainless Steel Bath for superior Durability & High Thermal efficiency.
Flat Stainless Steel Lid prevents evaporation.
Offers highest level of performance, flexibility and control for most demanding applications.
Industrial grade energy efficient heaters reduce power bills drastically.
Double walled construction.
Space between the walls is fitted with special grade mineral wool in order to avoid thermal losses.
Drain plug is also fitted to the unit for user convenience.
Controls temperature within an accuracy of +0.5^oC.
MOC (Inner): Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
MOC (Outer): Outer chamber is made of M.S. sheet duly powder coated.
To work on 220/230V AC supply.

Technical Specification (For Thermostatic Model)

Temperature Controller: Hydraulic Type Capillary Thermostat
Stirring Device (OPTION): Available with or without stirring arrangement with the help of FHP stirrer (as Ordered)
Temperature Range: From ambient to + 5^oC to 80^oC + 0.5^oC
Diffuser Shelf: Heater protective perforated cover made of stainless Steel (SS-304)

Ordering Information (For Thermostatic Model)

Cat. No.	No. of Racks	Internal Dimension	Capacity Ltrs.	Heater Load
LI-25100/1	Serological Water Bath, with Stirrer, 2	300 x 250 x175 mm	14 ltrs	0.5+0.5 KW
LI-25100/2	Serological Water Bath, without Stirrer, 2	300 x 250 x175 mm	14 ltrs	0.5+0.5 KW
LI-25100/3	Serological Water Bath, with Stirrer, 4	300 x 300 x175 mm	18 ltrs	1.0+1.0 KW
LI-25100/4	Serological Water Bath, without Stirrer, 4	300 x 300 x175 mm	18 ltrs	1.0+1.0 KW
LI-25100/5	Serological Water Bath, with Stirrer, 6	455 x 300 x175 mm	25 ltrs	1.5+1.5 KW
LI-25100/6	Serological Water Bath, without Stirrer, 6	455 x 300 x175 mm	25 ltrs	1.5+1.5 KW
LI-25100/7	Serological Water Bath, with Stirrer, 8	605 x 300 x175 mm	32 ltrs	1.5+1.5 KW
LI-25100/8	Serological Water Bath, without Stirrer, 8	605 x 300 x175 mm	32 ltrs	1.5+1.5 KW

Technical Specification (For Digital Temp. Controller Model)

Temperature Range: Ambient +5^OC to 100^OC
Temperature Controller: Microprocessor Based PID Digital Temperature Indicator-cum-Controller
Temperature Accuracy: +0.5^OC
Temperature Sensor: RTD (Pt-100)
Temperature Display: With Digital LED Display for Set Value (SV) & Process Value (PV)
Stirring Device: Available with stirring arrangement with the help of FHP stirrer, as standard accessory.
Diffuser Shelf: Heater protective perforated cover made of stainless Steel (SS-304).
Regulator: Solid state electronic relay with protective heat sink

Ordering Information (For Digital Temp. Controller Model)

Cat. No.	No. of Racks	Internal Dimension	Capacity Ltrs.	Heater Load	Temp. Controller
LI-25100/9	Serological Water Bath, with Stirrer, 2	300 x 250 x175 mm	14 ltrs	0.5+0.5 KW	Microprocessor
LI-25100/10	Serological Water Bath, without Stirrer, 2	300 x 250 x175 mm	14 ltrs	0.5+0.5 KW	Microprocessor
LI-25100/11	Serological Water Bath, with Stirrer, 4	300 x 300 x175 mm	18 ltrs	1.0+1.0 KW	Microprocessor
LI-25100/12	Serological Water Bath, without Stirrer, 4	300 x 300 x175 mm	18 ltrs	1.0+1.0 KW	Microprocessor
LI-25100/13	Serological Water Bath, with Stirrer, 6	455 x 300 x175 mm	25 ltrs	1.5+1.5 KW	Microprocessor
LI-25100/14	Serological Water Bath, without Stirrer, 6	455 x 300 x175 mm	25 ltrs	1.5+1.5 KW	Microprocessor
LI-25100/15	Serological Water Bath, with Stirrer, 8	605 x 300 x175 mm	32 ltrs	1.5+1.5 KW	Microprocessor
LI-25100/16	Serological Water Bath, without Stirrer, 8	605 x 300 x175 mm	32 ltrs	1.5+1.5 KW	Microprocessor
LI-25100/17	Serological Water Bath, with Stirrer, 2	300 x 250 x175 mm	14 ltrs	0.5+0.5 KW	SAD Controller
LI-25100/18	Serological Water Bath, without Stirrer, 2	300 x 250 x175 mm	14 ltrs	0.5+0.5 KW	SAD Controller
LI-25100/19	Serological Water Bath, with Stirrer, 4	300 x 300 x175 mm	18 ltrs	1.0+1.0 KW	SAD Controller
LI-25100/20	Serological Water Bath, without Stirrer, 4	300 x 300 x175 mm	18 ltrs	1.0+1.0 KW	SAD Controller
LI-25100/21	Serological Water Bath, with Stirrer, 6	455 x 300 x175 mm	25 ltrs	1.5+1.5 KW	SAD Controller
LI-25100/22	Serological Water Bath, without Stirrer, 6	455 x 300 x175 mm	25 ltrs	1.5+1.5 KW	SAD Controller
LI-25100/23	Serological Water Bath, with Stirrer, 8	605 x 300 x175 mm	32 ltrs	1.5+1.5 KW	SAD Controller
LI-25100/24	Serological Water Bath, without Stirrer, 8	605 x 300 x175 mm	32 ltrs	1.5+1.5 KW	SAD Controller
