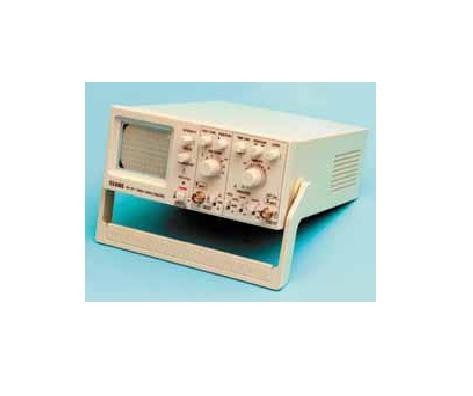

Single Trace Osciloscope

Technical Specifications:

• SINGLE TRACE OSCILOSCOPE: DC to 10MHz Bandwidth. 5mV/div Sensitivity. 100ms/div to 100ns/div Time Base. X-Y Operation.
• Auto or Normal Trigger Selection.
• Triggering upto 15MHz. 8 x 10 cm Display.
• Trace Rotation. 40mm Rectangular Internal Graticule CRT.

Space Saver. 1.5KV Mono Acceleration.

Ordering Information :

Catalogue No.   LPH-93232
