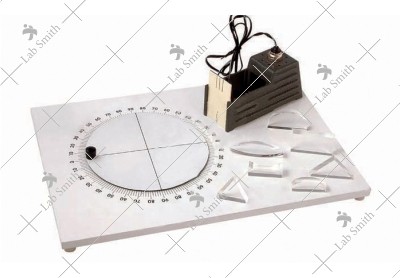

Optical Set For Ray Track Apparatus

Comprises a white painted wooden board mounted on nonskid plastic feet, and a removable turntable about 170 mm in diameter. Two orthogonal lines along the turntable’s diameter divide it into four equal quadrants Just beyond the rim of the turntable, a circular scale graduated 90 – 0 – 90 – 0 – 90 °, with 1° subdivision, Also includes a ray box with a 12V, 24W bulb Supplied complete with a cylindrical convex lens with focal length approx. 75 mm and two double slits, giving one wide beam slit and one each of single, triple and five slits An optical set is available separately, comprising of one each of rectangular, semi-circular, right-angled triangular – 90 ° 45 ° 45° trapezoidal, biconvex and biconcave prisms.
