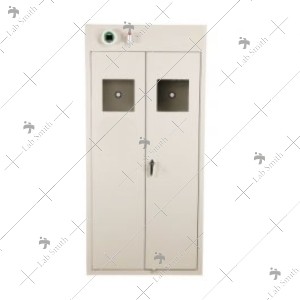

Gas Cylinder Storage Cabinet (2-Cylinder)

More Views

Gas Cylinder Storage Cabinet (2-Cylinder)

Code:

Gas Cylinder Storage Cabinet (2-Cylinder)

Description:

1. Constructed of durable, 1.2mm galvanized steel with a tough powder-coat paint to provide excellent corrosion resistance.
2. Equipped with explosion-proof windows on the door, making it convenient to observe.
3. Pass holes set on the side ensure well ventilation.
4. 2-point manual latch with keyed lock prevents unauthorized access.
5. Adopted stationary chain to keep cylinders standing vertically.
6. Sturdy, foldable pedal on the bottom helps to load and unload easily.
7. Combustible gas detector system has certification with  ExdⅡ CT6 and IP65.
8. Alarm device will be activated flashlight and buzzer once system detects leakage of gas.
9. Two air-exhaust systems are optional. One equips with fan and leakage is expelled externally to reduce gas concentration inside. The other provides port for connecting between main exhaust system and cabinet.

Technical Specifications:

Catalogue No. Description Door Type Color Dimension (HxWxD)cm Packing Size (HxWxD)cm Remark
LS-WA710102 2-Cylinder Double/Manual Gray 190 x 90 x 45 204 x 97.3 x 56.7 With Air Blower
LS-WA720102 2-Cylinder Double/Manual Gray 190 x 90 x 45 204 x 97.3 x 56.7 Without Air Blower
Description

Details

Gas Cylinder Storage Cabinet (2-Cylinder)

Description:

1. Constructed of durable, 1.2mm galvanized steel with a tough powder-coat paint to provide excellent corrosion resistance.
2. Equipped with explosion-proof windows on the door, making it convenient to observe.
3. Pass holes set on the side ensure well ventilation.
4. 2-point manual latch with keyed lock prevents unauthorized access.
5. Adopted stationary chain to keep cylinders standing vertically.
6. Sturdy, foldable pedal on the bottom helps to load and unload easily.
7. Combustible gas detector system has certification with  ExdⅡ CT6 and IP65.
8. Alarm device will be activated flashlight and buzzer once system detects leakage of gas.
9. Two air-exhaust systems are optional. One equips with fan and leakage is expelled externally to reduce gas concentration inside. The other provides port for connecting between main exhaust system and cabinet.

Technical Specifications:

Catalogue No. Description Door Type Color Dimension (HxWxD)cm Packing Size (HxWxD)cm Remark
LS-WA710102 2-Cylinder Double/Manual Gray 190 x 90 x 45 204 x 97.3 x 56.7 With Air Blower
LS-WA720102 2-Cylinder Double/Manual Gray 190 x 90 x 45 204 x 97.3 x 56.7 Without Air Blower
