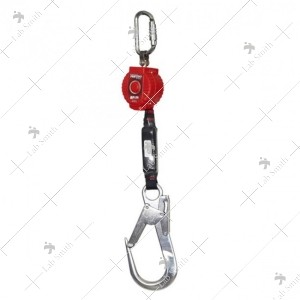

Honeywell Fall Arrestor Block [2.5 mtrs]

More Views

Honeywell Fall Arrestor Block [2.5 mtrs]

Code:
Honeywell Fall Arrestor Block [2.5 mtrs]

Honeywell Fall Arrestor Block 2.5 mtrs Webbing Personal Fall Limiter.
Materials
  • Housing : Thermoplastic Cover/Aluminum Extrusion
  • Thread : No.415 6 cord bonded, 3 strand polyester
  • Snaphook : Drop Forged Steel
  • Webbing : Polyester/Vectran Technical
  • Max Working Load : 310 lbs (140.62 kg) - 400lbs (181.44 kg) available
  • Ultimate Strength : 3000 lbs. (13.34 kN)
  • Lifeline Tension : 3 to 4 lbs. (13.3/17.8 N)
  • Free Fall Distance : 24” Max. (609.6 mm)
  • Deceleration Distance : 42” Max (1.06m)
  • Arresting Force (Internal Shock Absorber) : 900 lbs. (approx.) (4kN)
  • Strength Test : 300 lbs. 4’ free fall (1.33 kN @ 1.22m free fall)
  • Weight : 2.94 lbs. (1.2kg

Catalogue No LSFPHO-SFAB
 Compliance  OSHA 1926.502, 1910.66, ANSI A10.32, *ANSI Z359-2007 and CSA Z259.2.2 Type 1 requirement
Length Size 2.5 mtrs

Description

Details

Honeywell Fall Arrestor Block [2.5 mtrs]

Honeywell Fall Arrestor Block 2.5 mtrs Webbing Personal Fall Limiter.
Materials
  • Housing : Thermoplastic Cover/Aluminum Extrusion
  • Thread : No.415 6 cord bonded, 3 strand polyester
  • Snaphook : Drop Forged Steel
  • Webbing : Polyester/Vectran Technical
  • Max Working Load : 310 lbs (140.62 kg) - 400lbs (181.44 kg) available
  • Ultimate Strength : 3000 lbs. (13.34 kN)
  • Lifeline Tension : 3 to 4 lbs. (13.3/17.8 N)
  • Free Fall Distance : 24” Max. (609.6 mm)
  • Deceleration Distance : 42” Max (1.06m)
  • Arresting Force (Internal Shock Absorber) : 900 lbs. (approx.) (4kN)
  • Strength Test : 300 lbs. 4’ free fall (1.33 kN @ 1.22m free fall)
  • Weight : 2.94 lbs. (1.2kg

Catalogue No LSFPHO-SFAB
 Compliance  OSHA 1926.502, 1910.66, ANSI A10.32, *ANSI Z359-2007 and CSA Z259.2.2 Type 1 requirement
Length Size 2.5 mtrs
