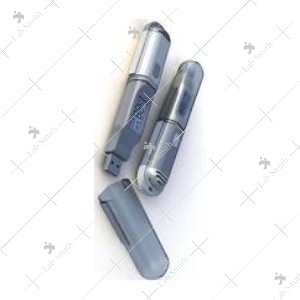

USB Humidity And Temperature Data Logger

More Views

USB Humidity And Temperature Data Logger

Code:

USB Humidity And Temperature Data Logger

These are available in a huge number of variety that are creatively designed by our team of diligent designers. We have been fabricated our assortment of Measuring Instruments as per the modern market requirements.

Features

Recording status displayed by two dichromatic LED lights; Measurement range: temperature: -20°C-70°C; Humidity: 10-90%RH

Internal EERROM memory, tracks and records 8000 set temperature/humidity readings for as long as 12 months

```
Data transmission via USB link
```

Using the included software, users are allowed to set up alarm threshold, measuring unit, recording rate/timing etc.

Time synchronization when connected to PC.

The included software also supports data analysis, recorded data can be export into a .txt file for further analysis. Recorded temperature and humidity readings can be displayed in a curve graph which can be printed and archived as well.

Technical Specification:

Model No.		JSRDL120A
Product Name		USB Humidity and Temperature Data Logger
Structure	Dimension	126×28×51mm
	Display	Two dichromatic LED lights
	Material	ABS engineering plastic housing, safe and reliable
Temperature	Range	-20~70°C
	Resolution	0.1°C
	Precision	±0.3°C
Humidity	Range	10-90%RH
	Resolution	0.1%RH
	Precision	±2%RH
Power Supply		DC3.6V lithium battery Battery dimension: 14.3×24.6 Capacity: 1200mAh
Power Consumption		<0.2mA
Data interface		USB 1.0/2.0
Software CD		Included

Description

Details

USB Humidity And Temperature Data Logger

These are available in a huge number of variety that are creatively designed by our team of diligent designers. We have been fabricated our assortment of Measuring Instruments as per the modern market requirements.

Features

Recording status displayed by two dichromatic LED lights; Measurement range: temperature: -20°C-70°C; Humidity: 10-90%RH

Internal EERROM memory, tracks and records 8000 set temperature/humidity readings for as long as 12 months

```
Data transmission via USB link
```

Using the included software, users are allowed to set up alarm threshold, measuring unit, recording rate/timing etc.

Time synchronization when connected to PC.

The included software also supports data analysis, recorded data can be export into a .txt file for further analysis. Recorded temperature and humidity readings can be displayed in a curve graph which can be printed and archived as well.

Technical Specification:

Model No.		JSRDL120A
Product Name		USB Humidity and Temperature Data Logger
Structure	Dimension	126×28×51mm
	Display	Two dichromatic LED lights
	Material	ABS engineering plastic housing, safe and reliable
Temperature	Range	-20~70°C
	Resolution	0.1°C
	Precision	±0.3°C
Humidity	Range	10-90%RH
	Resolution	0.1%RH
	Precision	±2%RH
Power Supply		DC3.6V lithium battery Battery dimension: 14.3×24.6 Capacity: 1200mAh
Power Consumption		<0.2mA
Data interface		USB 1.0/2.0
Software CD		Included
