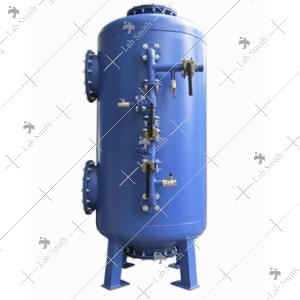

Water Softeners

The water softener consists of high exchange capacity strongly acidic - sodium form resin. The cation resin is used to exchange sodium ions for the scale forming calcium and magnesium, and thus produce soft water, the ion exchanger is regenerated with a sodium chloride solution when the bed is exhausted.

LabSmith Softeners are available in a wide range of self-contained packages confi gured in single, double, and multiple unit systems to remove calcium and magnesium from your water. LabSmith Softeners are used for municipal, institutional, and industrial water softenin gapplications. Single unit is rated for flows up to 50000 litslhr. For larger flow rates, contact LabSmith to determine whether larger or multiple units would be appropriate. Both options are available with LabSmith.

LabSmith Softeners are economical and efficient and can be equipped for manual, semi-automatic, or fully-automatic operation. Regardless of the configuration, only limited technical expertise is required for operation. LabSmith Softeners can be integrated into a complete water treatment system without expensive custom field engineering and programming.

Features:

• 100% Environment friendly Water Conditioner.
• Uses no salt and does not discharge salt into the environment.
• Saves money each day by eliminating salt from water.
• 100% Water Efficient. Wastes no water and has no Backwash Cycle.
• Very low pressure drop compared to a water softener.
• Latest Technology Scale Prevention Media.
• Good for water hardness up to 500 ppm.
• User friendly. No control head and no programming!
• Easy Installation . Requires No maintenance. Install and walk away
• Leaves beneficial calcium in the water for health benefits.
• Prevents scale buildup in water heaters, dishwashers, ice machines and pipes. This is the primary benefit.
• Transforms dissolved calcium (ionic calcium) into tiny calcium crystals (crystalline calcium) which are easily rinsed away by flowing water instead of getting deposited onto surfaces and pipes.
• Works with Reverse Osmosis systems also.
• Works to eliminate EXISTING scales in pipes and in appliances.
• Media lasts about 3-5years (depending on the water quality and usage)
• Eliminates the "slippery" feel of softened water •:• Soap works better. Users typically use25% less detergents.

Note: Maximum Allowable Water Hardness will be of 1000 ppm Not for use with water that contains Iron, Manganese, Copper, or Hydrogen Sulfide, as this will permanently bind to the media and greatly reduce its effectiveness.

Applications

The following facilities are examples of ideal applications of water softening equipment:
• Beverage Plants • Municipal Water Plants • Boiler Feed water • Hospitals • Laundries • Manufacturing Plants • Food Processing Plants • Institutions • Hotels • Residential Buildings

Ordering Information & Technical Data

Note: In case, the feed water hardness increases, the OBR (Output Between Regeneration) will proportionately decrease, or vice versa.
Treated water quality : TH of < 10 ppm (commercial zero )
Hardness - The concentration of Calcium & Magnesium salts in water
