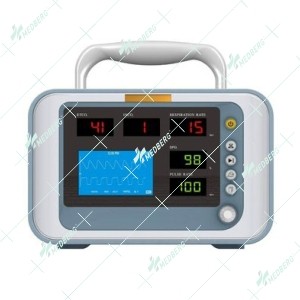

Portable ETCO2 Monitor

Portable  ETCO2  Monitor works on Principle of operation Solid state side stream module. Single beam, non-dispersive infrared (NDIR) absorption, ratio metric measurement.

Product Details:

 Specification :-

• Initialization time Capnogram within 10 sec., full specifications within 60 sec.

• Calibration Routine calibration is not required. 8sec zero performed when power on or ambient temperature changing too faster.

• Sampling flow rate 100 ml/min (can be set from 50 to 200ml/min).

• CO2 (Carbon dioxide) Compensations: N2O & O2 (selectable), BP (automatic) Capnogram: Selectable sweep speed (4.41, 8.82, or 17.64mm/sec) Range: 0 - 150 mmHg Accuracy: ±2 mmHg (for 0 - 40 mmHg) ±5% of reading (for 41 - 70 mmHg) ±8% of reading (for 71 - 150 mmHg) Resolution: 1 mmHg Response Time: 28 ms

• Respiratory rate Accuracy: ±1 br/min Range: 0-150 br/min Resolution: 1 br/min

• Pulse Oximeter Model TM 109 ETCO2/SPO2 monitor

• Principle of operation Red/Infrared absorption.

• SpO2 (Oxygen saturation) Range: 0-100% Accuracy: ±2% SpO2 (for 80-100% SpO2) ±3% SpO2 (for 50-79% SpO2) (1 SD, or 68% of readings within claim) Unspecified for 0-49% SpO2 Resolution: 1% Averaging: 8 sec.

• Pulse rate Range: 20-254 bpm Accuracy: ±1% of full scale Resolution: 1 bpm Averaging: 8 sec.

• SENSORS Reusable Y-Sensor (can be sterilized and used with all patient populations); reusable adult finger sensor.

• Plethysmogram Pulsatile waveform with autogain.

• General Alerts Limits: Adjustable limits for ETCO2, SpO2, Respiratory and Pulse Rates Audio: 3 model adjustable volume, silence or OFF Visual: On-screen & red or yellow background with black text

• Display Type: LCD with backlinghting Size: 5.6"( 144.8mmW*110.2mmH, 640*480) Physical Size: 175mm H * 240mm W * 140mm D Weight: 1.8 kg

• Electrical Power requirements: 100-120/200-240 VAC, 50-60 Hz, 24VA Battery: Li, 5hr. life, 5 hr. recharge

• Environmental Operating temperature: 10-50° C Operating humidity: 0-90% relative (non-condensing)

Features:

• Supports adult, pediatric and neonatal patient

• Alarms for high and low ETCO2, respiratory rate, SPO2 value, pulse rate.

• Color-coded graphic

• Standard with sidestream ETCO2, easily change to mainstream by advanced order.

• Power on and go

• Silence or temporarily pause alarms

• Quick to learn, easy to use

• Push function keys according prompt

• Universal icons with single-level menus

• Flexible, portable and lightweight

• Minimum 5 hours operating time

• Supports battery exchange without loss of power

• Weighs 1.8 kg. with four battery waveforms and up to eight parameters using a 14.2 cm (5.6 in) LCD.
