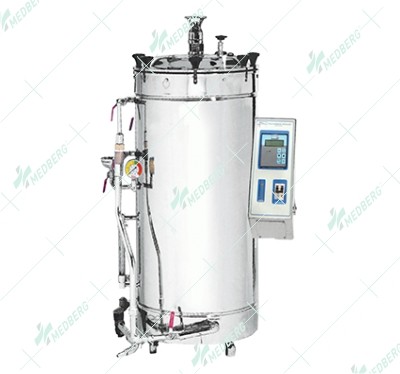

Double Wall Autoclave With Vacuum

Double Wall Autoclave With Vacuum

More Views

Double Wall Autoclave With Vacuum

Code:
Double Wall Autoclave With Vacuum
Features
  • Top end model for sterilization of all critical application with exact reproducibility
  • Unique double wall design
  • Heavy duty jacket
  • Fully automatic operation
  • µp based PID controller with dual display for Temp. & Time
  • Pre & Post Vacuum available
  • Reduced loading height
Specification
Model JDW35-H JDW75-H JDW111-H JDW35V-H JDW75V-H JDW111V-H
Capacity 35 Ltrs 75 Ltrs 111 Ltrs 35 Ltrs 75 Ltrs 111 Ltrs
Order Code KT2510 KT2511 KT2512 KT3010 KT3011 KT3012
Chamber Dimension 300 x 500mm 400 x 600mm 450 x 700mm 300 x 500mm 400 x 600mm 450 x 700mm
Construction SS 304 SS 304 SS 304 SS 304 SS 304 SS 304
Power Consumption 2 Kw 6 Kw 6 Kw 2 Kw 6 Kw 6 Kw
Operating Pressure 2.1 kg / cm2 2.1 kg / cm2 2.1 kg / cm2  2.1 kg / cm2 2.1 kg / cm2 2.1 kg / cm2
Operating Temperature  1340C 1340C 1340C 1340C  1340C  1340 C
Voltage 230V 230V 230V 230V 230V 230V
Control Digital Digital Digital Digital Digital Digital
Gross Weight 139 kg 161 kg 249 kg 147 kg 169 kg 257 kg
Shipping Size (WxDxH) 800 x 570 x 1110 900 x 710 x 1215 1050 x 870 x 1285 880 x 625 x 1110 980 x 750 x 1215 1150 x 925 x 1285

Description

Details

Double Wall Autoclave With Vacuum
Features
  • Top end model for sterilization of all critical application with exact reproducibility
  • Unique double wall design
  • Heavy duty jacket
  • Fully automatic operation
  • µp based PID controller with dual display for Temp. & Time
  • Pre & Post Vacuum available
  • Reduced loading height
Specification
Model JDW35-H JDW75-H JDW111-H JDW35V-H JDW75V-H JDW111V-H
Capacity 35 Ltrs 75 Ltrs 111 Ltrs 35 Ltrs 75 Ltrs 111 Ltrs
Order Code KT2510 KT2511 KT2512 KT3010 KT3011 KT3012
Chamber Dimension 300 x 500mm 400 x 600mm 450 x 700mm 300 x 500mm 400 x 600mm 450 x 700mm
Construction SS 304 SS 304 SS 304 SS 304 SS 304 SS 304
Power Consumption 2 Kw 6 Kw 6 Kw 2 Kw 6 Kw 6 Kw
Operating Pressure 2.1 kg / cm2 2.1 kg / cm2 2.1 kg / cm2  2.1 kg / cm2 2.1 kg / cm2 2.1 kg / cm2
Operating Temperature  1340C 1340C 1340C 1340C  1340C  1340 C
Voltage 230V 230V 230V 230V 230V 230V
Control Digital Digital Digital Digital Digital Digital
Gross Weight 139 kg 161 kg 249 kg 147 kg 169 kg 257 kg
Shipping Size (WxDxH) 800 x 570 x 1110 900 x 710 x 1215 1050 x 870 x 1285 880 x 625 x 1110 980 x 750 x 1215 1150 x 925 x 1285
