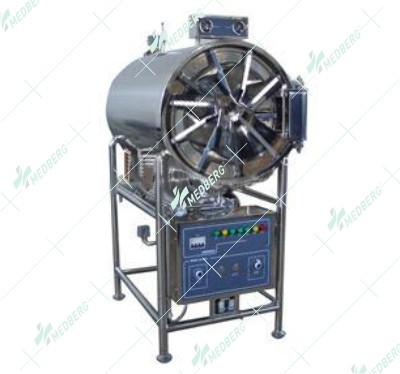

Horizontal cylindrical pressure steam sterilizer

More Views

Horizontal cylindrical pressure steam sterilizer

Code:
Horizontal cylindrical pressure steam sterilizer

Characteristics:

1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. Fully stainless steel structure.

Technical data
MODEL JWS-150YDC JWS-200YDC JWS-280YDC JWS-400YDC
Sterilizing chamberVolume 150Lφ440 × 850mm 200Lφ515 × 1000mm 280Lφ600 × 1000mm 400Lφ700 × 1100mm
working pressure 0.22MPa
working  temperature 134℃
Adjustment of temperature 40℃- 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤±2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz
Dimension 1400×600×1300 1400×670×1650 1400×770×1780 1430×880×1830
Transport dimension 1550 × 750 × 1850 1560 × 820 × 1850 1680 × 920 × 2100 1600 × 1050 × 2100
G.W/N.W 320/240 KG 350/260 KG 465/365 KG 530/420 KG

Description

Details

Horizontal cylindrical pressure steam sterilizer

Characteristics:

1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5. The safety value will be open automatically when the inner pressure over 0.24MPa and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. Fully stainless steel structure.

Technical data
MODEL JWS-150YDC JWS-200YDC JWS-280YDC JWS-400YDC
Sterilizing chamberVolume 150Lφ440 × 850mm 200Lφ515 × 1000mm 280Lφ600 × 1000mm 400Lφ700 × 1100mm
working pressure 0.22MPa
working  temperature 134℃
Adjustment of temperature 40℃- 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤±2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz
Dimension 1400×600×1300 1400×670×1650 1400×770×1780 1430×880×1830
Transport dimension 1550 × 750 × 1850 1560 × 820 × 1850 1680 × 920 × 2100 1600 × 1050 × 2100
G.W/N.W 320/240 KG 350/260 KG 465/365 KG 530/420 KG
