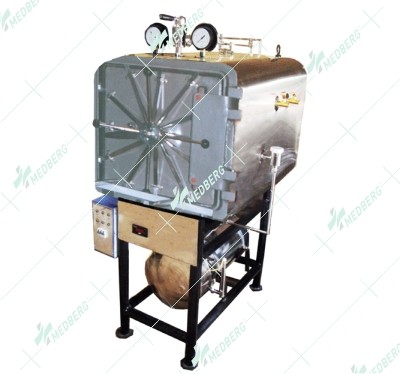

Steam Sterilizer Horizontal Hp Rectangular

Application

• "MEDBERG" Sterilizers are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.

Constructional And Features

• Inner Chamber is made up of thick non-magnetic steel of 304/316 quality and jacket is made out of rolled steel.

• Single door made of rolled steel lined with S.S. sheets has radial locking system.

• All units are hydraulically tested upto 40psi.

• The space between outer cover made of thick rolled steel sheet and the steam jacket is filled with asbestos sheet or glass wool to minimize thermal losses.

• Boiler is made of thick stainless steel sheet and is located under the sterilizer.

• Unit is fitted with water level indicator, safety valve, pressure gauge, water inlet and drain valves.

• Unit is also fitted with low-water level cut-off device and automatic pressure control device.

• All "MEDBERG" rectangular sterilizes are fitted with SELF LOCKING SAFETY DOOR device.

• The door cannot be opened when chamber is under pressure.

• Two separate valves are provided for evacuating steam from inner chamber and jacket, as and when desired.

• Fitted with safety valve as a safety device.

• Drain valve is fitted at the side bottom for easy draining/cleaning.

• Fitted with vacuum breaker to break vacuum in case of formation of vacuum due to steam condensation.

• Triple Walled with Steam Jacket and Separate Boiler. Sterilization cycle is controlled by Multiport Valve. The unit is fitted with all standard accessories.

• To work on 440 volts, 3 Phase, A.C. Supply.
