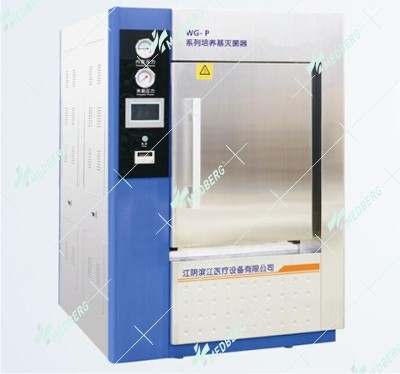

Medium Sterilizer

Medium Sterilizer

More Views

Medium Sterilizer

Code:
Medium Sterilizer

This series of pulsation vacuum sterilizer uses saturated steam as its sterilization medium, because the saturated steam releases a large amount of latent heated physical properties in the stage of condensation. Applicable for high temperature sterilization equipment to be used in medium products. It has been widely used in pharmaceutical, medical, scientific research projects.

Main Parameters and Utilities
Design Pressure 0.245 MPa
 Design Temperature 1390 C
Vacuum -0.09 MPa
Water Source Pressure 0.15-0.3 MPa
Steam Pressure 0.3-0.7 MPa
Working Pressure 0.225 MPa
Working Temperature 105-1340C
Temperature Equilibrium ≤± 10C
Compressed Air Pressure 0.3-0.7 MPa
Power AC 380V; 50 Hz

Specifications & Ordering Details
Catalogue No

Overall Size

L x W x H (mm)

Chamber Size

L x φ

Steam

Consumption (Kg)

Tap Water

Consumption (KG)

Power

(KW)

Net Weight

(KG)
JWG-P06 1500 X 1360 X 1950 1200 X 610 X 910 30 45 3 + 1400
JWG-P08 1800 X 1360 X 1950 1500 X 610 X 910 40 50 3 1600
JWG-P12 1750 X 1440 X 1950 1450 X 680 X 1180 48 55 4 1800
JWG-P15 2150 X 1440 X 1950 1850 X 680 X 1180 55 60 4 2000
JWG-P20 1950 X 1750 X 2200 1600 X 900 X 1400 65 65 4 2500
JWG-P25 2300 X 1750 X 2200 1950 X 900 X 1400 75 75 6 3000
JWG-P30 2700 X 1750 X 2200 2400 X 900 X 1400 90 90 6 3500
JWG-P35 2700 X 1750 X 2200 2400 X 900 X 1400 105 105 6 4000
JWG-P40 2700 X 1750 X 2200 2400 X 900 X 1400 120 120 8 4500
JWG-P50 2700 X 1750 X 2200 2400 X 900 X 1400 135 135 8 5000

Structure and Characteristic of The Equipment
Body of the sterilizer:
  • Inspection procedures.
  • Tank of the horizontal rectangular structure is made from S30408.
  • Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to the requirements of the specification.
  • The equipment has standard GMP authentication interface.
Sterilizer piping system:
The pipeline is designed with the best configuration. By employing imported parts and quality domestic brands into main components.Sterilizer control system: with the adoption of Siemens PLC plus Siemens touch screen, this system is easy to implement the program selection, parameter setting, equipment operation, report processing and other functions. It has perfect safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records.it is designed and manufactured in accordance with GB150 "the Pressure Vessel”, and TSG R0004-2009 the “Safety and Technology Specification for Fixed Monitor Pressure Vessels” and related
Description

Details

Medium Sterilizer

This series of pulsation vacuum sterilizer uses saturated steam as its sterilization medium, because the saturated steam releases a large amount of latent heated physical properties in the stage of condensation. Applicable for high temperature sterilization equipment to be used in medium products. It has been widely used in pharmaceutical, medical, scientific research projects.

Main Parameters and Utilities
Design Pressure 0.245 MPa
 Design Temperature 1390 C
Vacuum -0.09 MPa
Water Source Pressure 0.15-0.3 MPa
Steam Pressure 0.3-0.7 MPa
Working Pressure 0.225 MPa
Working Temperature 105-1340C
Temperature Equilibrium ≤± 10C
Compressed Air Pressure 0.3-0.7 MPa
Power AC 380V; 50 Hz

Specifications & Ordering Details
Catalogue No

Overall Size

L x W x H (mm)

Chamber Size

L x φ

Steam

Consumption (Kg)

Tap Water

Consumption (KG)

Power

(KW)

Net Weight

(KG)
JWG-P06 1500 X 1360 X 1950 1200 X 610 X 910 30 45 3 + 1400
JWG-P08 1800 X 1360 X 1950 1500 X 610 X 910 40 50 3 1600
JWG-P12 1750 X 1440 X 1950 1450 X 680 X 1180 48 55 4 1800
JWG-P15 2150 X 1440 X 1950 1850 X 680 X 1180 55 60 4 2000
JWG-P20 1950 X 1750 X 2200 1600 X 900 X 1400 65 65 4 2500
JWG-P25 2300 X 1750 X 2200 1950 X 900 X 1400 75 75 6 3000
JWG-P30 2700 X 1750 X 2200 2400 X 900 X 1400 90 90 6 3500
JWG-P35 2700 X 1750 X 2200 2400 X 900 X 1400 105 105 6 4000
JWG-P40 2700 X 1750 X 2200 2400 X 900 X 1400 120 120 8 4500
JWG-P50 2700 X 1750 X 2200 2400 X 900 X 1400 135 135 8 5000

Structure and Characteristic of The Equipment
Body of the sterilizer:
  • Inspection procedures.
  • Tank of the horizontal rectangular structure is made from S30408.
  • Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to the requirements of the specification.
  • The equipment has standard GMP authentication interface.
Sterilizer piping system:
The pipeline is designed with the best configuration. By employing imported parts and quality domestic brands into main components.Sterilizer control system: with the adoption of Siemens PLC plus Siemens touch screen, this system is easy to implement the program selection, parameter setting, equipment operation, report processing and other functions. It has perfect safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records.it is designed and manufactured in accordance with GB150 "the Pressure Vessel”, and TSG R0004-2009 the “Safety and Technology Specification for Fixed Monitor Pressure Vessels” and related
