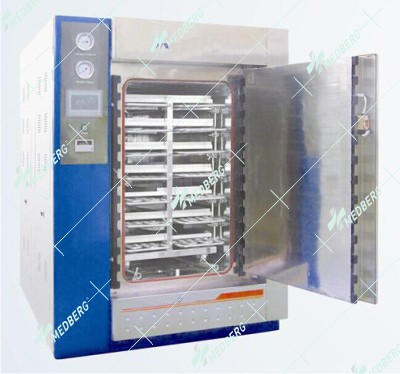

Multifunctional Medicine Sterilizer

Multifunctional Medicine Sterilizer

More Views

Multifunctional Medicine Sterilizer

Code:
Multifunctional Medicine Sterilizer

This series of multifunctional medicine sterilizer applies saturated steam as its sterilization medium. The saturated steam releases a large amount of latent heated physical properties in the stage of condensation. Thanks to the strong penetrability of the steam, the purpose of sterilization can be achieved by keeping the items to be sterilized for a period of insulation. By equipping with drier coil system, it provides powder type medicines a good drying effect without caking.

It is suitable for flavour, Chinese medical powder, healthy product, rice fish powder, healthy product, rice, fish power, potherb, tea, etc.

Main Parameters and Utilities
Design Pressure 0.245 MPa
 Design Temperature 1390 C
Vacuum -0.09 MPa
Water Source Pressure 0.15-0.3 MPa
Steam Pressure 0.3-0.7 MPa
Working Pressure 0.225 MPa
Working Temperature 105-1340C
Temperature Equilibrium ≤± 10C
Compressed Air Pressure 0.3-0.7 MPa
Power AC 380V; 50 Hz

Specifications & Ordering Details
Catalogue No

Overall Size
L x W x H (mm)
Chamber Size
L x W x H (mm)

Steam
Consumption (Kg)

Tap Water
Consumption
(Kg/ cycle)

Power
(KW)

Net Weight
(KG)
JWG-ZP025 1100 X 1350 X 1900X 800 X 600 X 600 18 35 2+ 900
JWG-ZP036 1300 X 1350 X 1900 1000 X 600 X 600 25 40 2+ 1000
JWG-ZP06 1500 X 1360 X 1950 1200 X 610 X 910 30 45 3+ 1400
JWG-ZP08 1800 X 1360 X 1950 1500 X 610 X 910 40 50 3 1600
JWG-ZP12 1750 X 1440 X 1950 1450 X 680 X 1180 48 55 4 1800
JWG-ZP15 2150 X 1440 X 1950 1850 X 680 X 1180 55 60 4 2000
JWG-ZP20 1950 X 1750 X 2200 1600 X 900 X 1400 65 65 4.5 2500
JWG-ZP25 2300 X 1750 X 2200 1950 X 900 X 1400 75 75 6 3000
JWG-ZP30 2700 X 1750 2400 X 900 X 1400 90 90 8 3500

Structure and Characteristic of The Equipment
Body of the sterilizer:
  • It is designed and manufactured in accordance with GB150 "the Pressure Vessel", and TSG R0004-2009 "Safety and Technology Specification for Fixed Monitor Vessels and related inspection procedures.
  • Tank of the horizontal rectangular double-deck structure is made from S30408.
  • Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to the requirements of the specification.
  • The equipment has standard GMP authentication interface.
Sterilizer piping system:
  • The pipeline is designed with the best configuration. By employing imported parts and quality domestic brands into main components.
  • Sterilizer control system: with the adoption of Siemens PLC plus Siemens touch screen, this system is easy to implement the program selection, parameter setting, equipment operation, report processing and other functions. It has perfect safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records.
Description

Details

Multifunctional Medicine Sterilizer

This series of multifunctional medicine sterilizer applies saturated steam as its sterilization medium. The saturated steam releases a large amount of latent heated physical properties in the stage of condensation. Thanks to the strong penetrability of the steam, the purpose of sterilization can be achieved by keeping the items to be sterilized for a period of insulation. By equipping with drier coil system, it provides powder type medicines a good drying effect without caking.

It is suitable for flavour, Chinese medical powder, healthy product, rice fish powder, healthy product, rice, fish power, potherb, tea, etc.

Main Parameters and Utilities
Design Pressure 0.245 MPa
 Design Temperature 1390 C
Vacuum -0.09 MPa
Water Source Pressure 0.15-0.3 MPa
Steam Pressure 0.3-0.7 MPa
Working Pressure 0.225 MPa
Working Temperature 105-1340C
Temperature Equilibrium ≤± 10C
Compressed Air Pressure 0.3-0.7 MPa
Power AC 380V; 50 Hz

Specifications & Ordering Details
Catalogue No

Overall Size
L x W x H (mm)
Chamber Size
L x W x H (mm)

Steam
Consumption (Kg)

Tap Water
Consumption
(Kg/ cycle)

Power
(KW)

Net Weight
(KG)
JWG-ZP025 1100 X 1350 X 1900X 800 X 600 X 600 18 35 2+ 900
JWG-ZP036 1300 X 1350 X 1900 1000 X 600 X 600 25 40 2+ 1000
JWG-ZP06 1500 X 1360 X 1950 1200 X 610 X 910 30 45 3+ 1400
JWG-ZP08 1800 X 1360 X 1950 1500 X 610 X 910 40 50 3 1600
JWG-ZP12 1750 X 1440 X 1950 1450 X 680 X 1180 48 55 4 1800
JWG-ZP15 2150 X 1440 X 1950 1850 X 680 X 1180 55 60 4 2000
JWG-ZP20 1950 X 1750 X 2200 1600 X 900 X 1400 65 65 4.5 2500
JWG-ZP25 2300 X 1750 X 2200 1950 X 900 X 1400 75 75 6 3000
JWG-ZP30 2700 X 1750 2400 X 900 X 1400 90 90 8 3500

Structure and Characteristic of The Equipment
Body of the sterilizer:
  • It is designed and manufactured in accordance with GB150 "the Pressure Vessel", and TSG R0004-2009 "Safety and Technology Specification for Fixed Monitor Vessels and related inspection procedures.
  • Tank of the horizontal rectangular double-deck structure is made from S30408.
  • Door sealing: Pneumatic sealing; both doors are interlocked and completely conform to the requirements of the specification.
  • The equipment has standard GMP authentication interface.
Sterilizer piping system:
  • The pipeline is designed with the best configuration. By employing imported parts and quality domestic brands into main components.
  • Sterilizer control system: with the adoption of Siemens PLC plus Siemens touch screen, this system is easy to implement the program selection, parameter setting, equipment operation, report processing and other functions. It has perfect safety measures. The F0 value and the temperature time gives double guarantee for sterilization. A single parameter control is also available. It has a perfect sterilization records.
