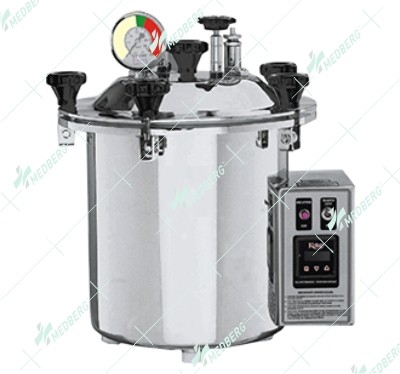

Portable Steam Autoclave (Semi Automatic)

Portable Steam Autoclave (Semi Automatic)

More Views

Portable Steam Autoclave (Semi Automatic)

Code:
Portable Steam Autoclave (Semi Automatic)
Features
  • SS Seamless depressed deep drawn chamber
  • μp based PID controller with dual display for Temp. & Time
  • R & D CENTERS
  • Fully SS Construction
  • Microprocessor Digital temperature controller cum timer
  • Over heat Auto shut down at 1370 C
  • Dual Display
  • Unique Shape heater of outer SS tubing
  • Food grade silicon rubber gasket for better durability
  • Specially designed heater for optimum chamber usage
  • Calibrated temperature cum pressure gauge
  • Color coded monitoring gauge
  • SS Safety Valve
  • Vacuum Breaker to remove air packets in the chamber
Specifications:
Model Capacity JPA06 JPA12 JPA21 JPA21S
Capacity 6 Ltrs 12 Ltrs 21 Ltrs 21 Ltrs
Order Code KT1010 KT1011 KT1012 KT1013
Chamber Dimension 200 x 200mm 250 x 250mm 300 x 300mm 300 x 300mm
Construction SS 304 SS 304 SS 304 SS 304
Power Consumption 1 Kw 1.5 Kw 2 Kw 2 Kw
Operating pressure 1.2/2.1kg/cm2 1.2/2.1kg/cm2 1.2/2.1kg/cm2 1.2/2.1kg/cm2
Operating Temperature 1210 C/1340 C 1210 C/1340 C 1210 C/1340 C 1210 C/1340 C
Sterilization time 0-99 mins 0-99 mins 0-99 mins 0-99 mins
Voltage 230V 230V 230V 230V
Gross Weight 13 kg 15 kg 17 kg 16 kg
Shipping Size (WxDxH)mm 420x390x455 490x430x515 515x470x565 515x470x565

Description

Details

Portable Steam Autoclave (Semi Automatic)
Features
  • SS Seamless depressed deep drawn chamber
  • μp based PID controller with dual display for Temp. & Time
  • R & D CENTERS
  • Fully SS Construction
  • Microprocessor Digital temperature controller cum timer
  • Over heat Auto shut down at 1370 C
  • Dual Display
  • Unique Shape heater of outer SS tubing
  • Food grade silicon rubber gasket for better durability
  • Specially designed heater for optimum chamber usage
  • Calibrated temperature cum pressure gauge
  • Color coded monitoring gauge
  • SS Safety Valve
  • Vacuum Breaker to remove air packets in the chamber
Specifications:
Model Capacity JPA06 JPA12 JPA21 JPA21S
Capacity 6 Ltrs 12 Ltrs 21 Ltrs 21 Ltrs
Order Code KT1010 KT1011 KT1012 KT1013
Chamber Dimension 200 x 200mm 250 x 250mm 300 x 300mm 300 x 300mm
Construction SS 304 SS 304 SS 304 SS 304
Power Consumption 1 Kw 1.5 Kw 2 Kw 2 Kw
Operating pressure 1.2/2.1kg/cm2 1.2/2.1kg/cm2 1.2/2.1kg/cm2 1.2/2.1kg/cm2
Operating Temperature 1210 C/1340 C 1210 C/1340 C 1210 C/1340 C 1210 C/1340 C
Sterilization time 0-99 mins 0-99 mins 0-99 mins 0-99 mins
Voltage 230V 230V 230V 230V
Gross Weight 13 kg 15 kg 17 kg 16 kg
Shipping Size (WxDxH)mm 420x390x455 490x430x515 515x470x565 515x470x565
