Orthopaedic Autoclaves

3 Drum Autoclave More Capacity with Guide Wire Attachment 12" x 35" Autoclave Size, Guide Wire Attachment Size 3" X 50"

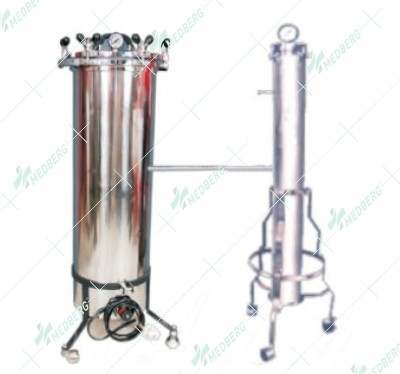

SINGLE CHAMBER "V" NETT AUTOCLAVE UNIT SIZE 12" X 35" & Guide Wire Attachment Pipe Grade 304 S.S.

Electrically and non electrically operated single chamber Autoclave (steam) Unit.

• Sterilize by water steam.

• Working Capacity : 0-30PSI (lb/ in2Kg/cm2)

• Total Container Capacity :0-30 PSI

Possible Steam Sterilize Items

Surgical Instruments, Dressing materials, Injection liquids, linen by means of steam under pressure of 15 - 20 PSI (Adjustable) Technical Specification: -121°C to 126°C

Electrical Load (Single Phase)

• 250 volts, A.C. 2.0 KW. Kettle element ISI 2000 W Heater.

Features

• Our Autoclave made of Lid and container with six wing nut closing system.

Lid

LID is made of L.M. 25 Alloy metal and stainless steel top with fitted Handle, Pressure Gauge, Whistle valve, DeadValve (Safety) and steam Exhaust valve:

• LID HANDLE: Handle with attach stainless steel stud and Brass insert Backlight material.
• PRESSURE GAUGE: Dial size 51mm  Drawn steel case with powder coating paint. Cover ring chromeplated. Bourdon Tube Phosphor bronze/ Brass Tube. Dial Aluminum white back and black & red printing.
• Window Glass Thread 1/8" BSP Capacity 0 to 30 PSI
• WHISTLE VALVE: Made of 1" Brass rod, spindle cape backlight and adjustable return stop.(Steam maintain Valve)
• DEAD VALVE (SAFETY): It is made of 1" Brass rod full free movable for safety first.
• STEAM EXHAUST VALVE Made of 5/8 Hex and spindle cape backlight for open lead is necessary to release steam.

CONTAINER

• Container is made of Alloy Metal 25 L.M. ring stainless steel cell, bottom and six wing nut for closing and gasket (Rubber ring) and side handle.

1. Gasket (Rubber Ring) & (Silicon Ring): It is made of natural material. It is used to tight top Lid between containers.

2. Stainless Steel Cell : This cell is made of stainless steel 304 grade 12 thickness sheets. O.D. 12" x 36" Length.

3. Wing Nut (key): Wing nut is made of same material with fitted backlight round knob and MS. Stud of 3 / 8"

4. thread x 2" Length chrome plated.

5. Bottom: It is made of stainless steel 304 grades and 1.2 thicknesses as necessary.

6. Side Handle: Side handle is fitted with container Gunmetal ring. This handle is made to pick up autoclave when whole autoclave is heated.

Accessories

1.            Stainless steel made in square stand of 6mm round.
