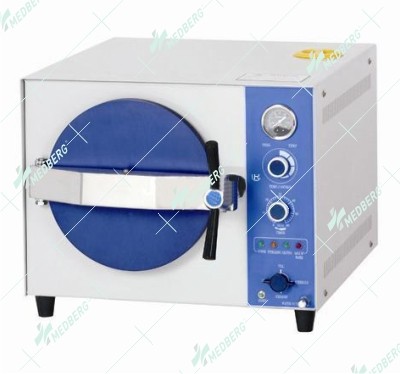

Table Top Steam Sterilizer

More Views

Code:

TABLE TOP STEAM STERILIZER

Characteristics:

1. Indicator light indicates working state.

2.For 4~6 minutes rapidly sterilizing.

3. Sterilizing temperature and time can be preset.

4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

5. over temperature & over pressure auto-protection.

6. Safe protection of water lacking.

7. Exhaust the cool air automatically.

8. with three stainless steel sterilizing plates.

9. The chamber of the sterilizer is made of stainless steel.

10. Automatically shut off with beep reminding after sterilization.

Technical data:

MODEL	JTM-XB20J	JTM-XB24J
Sterilizing chamber volume	20L（φ250×420 mm）	24L（φ250×520 mm）
Maximum working pressure	0.22Mpa
Maximum working temperature	134℃
Adjustment of temperature	105-134℃
Timer	0-60 min
Chamber temperature equal	≤ ± 1℃
Source power	1.5KW/AC 220V 50Hz (AC110V 60HZ)
Sterilizing plate	340×200×30 mm (3 piece)	400×200×30 mm (3 piece)
Dimension	480×480×384 mm	580×480×384 mm
Package dimension	700×580×500 mm	800×580×500 mm
G. W/N.W	44/40 kg	50/45 kg
