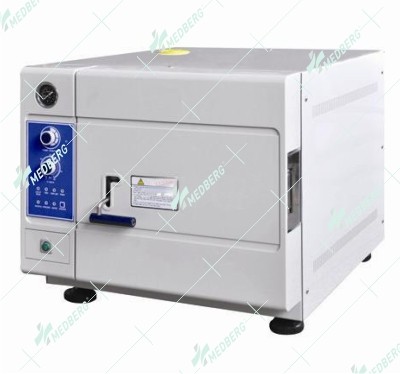

Table Top Steam Sterilizer

Table Top Steam Sterilizer

More Views

Table Top Steam Sterilizer

Code:
Table Top Steam Sterilizer
Characteristics:
1. Indicator light indicates working state.
2. For 4~6 minutes rapidly sterilizing.
3. Sterilizing temperature and time can be preset.
4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5. Over temperature & over pressure auto-protection.
6. Safe protection of water lacking.
7. Exhaust the cool air automatically.
8. Door safety lock system.
9. With three stainless steel sterilizing plates.
10. The chamber of the sterilizer is made of stainless steel.
11. Automatically shut off with beep reminding after sterilization.
Technical data:
MODEL JTM-XD20J JTM-XD24J JTM-XD35J JTM-XD50J
Sterilizing chamber volume 20L (φ 250 × 420 mm) 24L (φ 250 × 520 mm) 35L (φ 300 × 500 mm) 50L (φ 340 × 550 mm)
Working pressure 0.22Mpa
Working temperature 134℃
Adjustment  oftemperature 105-134℃
Timer 0-60 min
Heat average ≤ ± 1℃
Power 1.5 KW / AC220V 50Hz 2.7 KW / AC220V 50Hz
Sterilizing plate 340×200×30 mm(3piece) 400×200×30 mm(3piece) 400×200×30 mm(4piece) 500×250×30 mm(4piece)
Dimension 480×480×384 mm 580×480×384 mm 730×550×510 mm 770×600×540 mm
Package dimension 700×580×500 mm 800×580×500 mm 820×680×650 mm 880×730×700 mm
G. W/N.W 43/38 kg 50/44 kg 95/80 kg 112/93 kg

Description

Details

Table Top Steam Sterilizer
Characteristics:
1. Indicator light indicates working state.
2. For 4~6 minutes rapidly sterilizing.
3. Sterilizing temperature and time can be preset.
4. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
5. Over temperature & over pressure auto-protection.
6. Safe protection of water lacking.
7. Exhaust the cool air automatically.
8. Door safety lock system.
9. With three stainless steel sterilizing plates.
10. The chamber of the sterilizer is made of stainless steel.
11. Automatically shut off with beep reminding after sterilization.
Technical data:
MODEL JTM-XD20J JTM-XD24J JTM-XD35J JTM-XD50J
Sterilizing chamber volume 20L (φ 250 × 420 mm) 24L (φ 250 × 520 mm) 35L (φ 300 × 500 mm) 50L (φ 340 × 550 mm)
Working pressure 0.22Mpa
Working temperature 134℃
Adjustment  oftemperature 105-134℃
Timer 0-60 min
Heat average ≤ ± 1℃
Power 1.5 KW / AC220V 50Hz 2.7 KW / AC220V 50Hz
Sterilizing plate 340×200×30 mm(3piece) 400×200×30 mm(3piece) 400×200×30 mm(4piece) 500×250×30 mm(4piece)
Dimension 480×480×384 mm 580×480×384 mm 730×550×510 mm 770×600×540 mm
Package dimension 700×580×500 mm 800×580×500 mm 820×680×650 mm 880×730×700 mm
G. W/N.W 43/38 kg 50/44 kg 95/80 kg 112/93 kg
