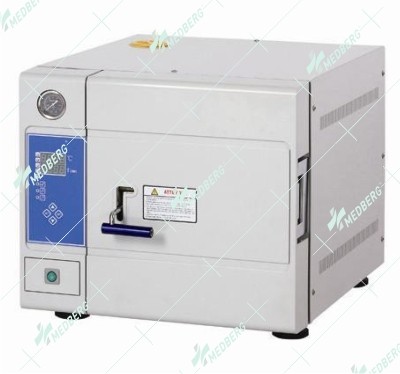

Table Top Steam Sterilizer
fully automatic microcomputer type
Characteristics:
1. For 4~6 minutes rapidly sterilizing.
2. Digital display of working status, touch type key.
3. With 3 fixed cycles of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
4. The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
4. Steam-water inner circulation system: No steam discharge and the environment for sterilizing will be clean and dry.
5. Exhaust the cool air automatically.
6. Safe protection of water lacking.
7. Door safety lock system.
8. With four stainless steel sterilizing plates.
9. The chamber of the sterilizer is made of stainless steel.
10. Automatically shut off with beep reminding after sterilization.
11. With drying function.
Technical data:
MODEL |
JTM-XD20D |
JTM-XD24D |
JTM-XD35D |
JTM-XD50D |
Sterilizing chamber volume |
20L(φ250×420 mm) |
24L(φ250×520 mm) |
35L(φ300×500 mm) |
50L(φ340×550 mm) |
Working pressure |
0.22Mpa |
Working temperature |
134℃ |
Adjustment oftemperature |
105-134℃ |
Timer |
0-99 min |
Heat average |
≤ ± 1℃ |
Power |
1.5 KW / AC220V 50Hz |
2.7 KW / AC220V 50Hz |
Sterilizing plate |
340×200×30 mm(3piece) |
400×200×30 mm(3piece) |
400×200×30 mm(4piece) |
500×250×30 mm(4piece) |
Dimension |
480×480×380 mm |
580×480×384 mm |
730×550×510 mm |
770×600×540 mm |
Package dimension |
700×580×500 mm |
800×580×500 mm |
810×680×650 mm |
880×730×700 mm |
G. W/N.W |
43/40 kg |
50/45 kg |
90/73 kg |
105/86 kg |
