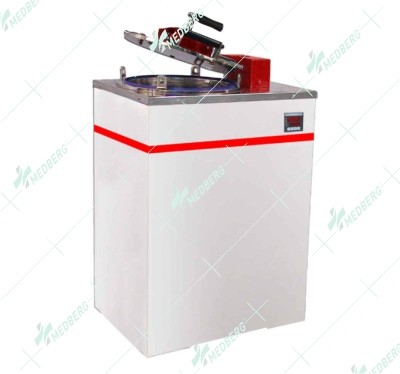

Vertical Autoclave Pro

Construction

• Inside chamber made of Stainless Steel (SS-304) and Outside Chamber & Lid made of Stainless Steel.

• Lid of from Stainless Steel Plate

• NO FLYNUTS TIGHTENNING - NEW SAFE & USERFRIENDLY LID LOCKING - SNGLE LEVER LOCK.

• Easy lifting & closing of the LID with assisted support.

• Lid interlock for residual pressure.

• Easy to access all critical components due to its square modular design.

• Spring loaded safety valve.

• Independent over temperature cut off (Optinal).

• Audio & visual alarms for sensor break and low water level alarm.

Control Panel & Switchgears

• Micro processor Controller with Time & Temperature user Programmable

• A backlit alphanumerical two line 32 character LCD display, Display all

• Information including process and set values at a glance eliminating guesswork.

• Smart Microprocessor based temp. controller (LCD Display)

• Temperature: Range up to 122.0oC in 0.1oC resolution and a control accuracy of ± 0.5oC.

• Timer: 1-99 minutes

• Class 'A' Platinum (Pt-100) sensor, enabling precise and accurate monitoring.

• Low water level alarm and cut off for safety of heater.

• Sensor open alarm and display.

• End of cycle buzzer to alert the user and auto reset.

• Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.

• Solenoid Valve for automatic purging and exhaust (user settable).

• Industrial grade energy efficient heaters reduce power bills drastically.

• End Cycle Buzzer and Auto Reset.

• Miniature Circuit Breaker for MAINS On/Off plus safety

• Industrial grade energy efficient ring type heater, customs made for Autoclave, thus reducing power by 16-40%

• Digital Pressure Indicator displayed directly into the main control panel

Mechanical

• Lid fitted with Pressure gauge, safety valve, Safety Fusing Plug, Manual exhaust valve, vacuum breaker Cum purge valve and quick release coupling for online pressure calibration checks.

• Auto lifting device - Safety and user friendly

• Drain valve at bottom for easy draining and cleaning

• Molded rubber gasket

• Stainless Steel Carrier (s) along with heater cover stand.

Options

• Digital Pressure Indicator displayed directly into the main control panel

• Class 5 Emulating Indicator (pack of 400 strips)
