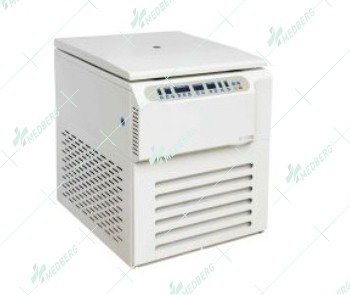

Large Capacity Refrigerated Centrifuge
- Widely used in the area of blood station, pharmaceutical factory, biochemistry, biological products and so on. It is the ideal instruments for blood separation, protein precipitation and cell collection..
Features:
-
Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
-
Brushless DC motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
-
Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
-
Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
-
Microprocessor control, speed, time, temperature and RCF in operation, speed rising and reducing quick, operate simply.
-
10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
-
There are many rotors for your choice, adapters are available by experiment requirements.
-
3 tiers protection steel cover, safe and reliable.
Technical Parameters:
| Catalogue No |
JDDL6 |
| Max speed |
6000r/min |
| Time range |
0~99H59min |
| Temperature range |
-20~40℃ |
| Temperature accuracy |
±1℃ |
| Motor |
Brushless |
| Power |
AC110/220V, 50-60HZ,20A |
| Max RCF |
6600*g |
| Speed accuracy |
±50r/min |
| Dimension |
800*675*830mm |
| Noise |
≦55dBA |
| Packaged dimension |
1500*790*960mm |
| Net Weight |
220KG |
| Capacity |
4*1000ml |
| Gross Weight |
260KG |
| Package |
wooden box |
Rotors for centrifuge JDDL6
| Order No. |
Rotor |
Max speed (rpm) |
Max capacity(ml) |
Max RCF(*g) |
| J33097 |
Swing rotor |
4000 |
4*1000 |
4060 |
| J33221 |
Angle rotor |
6000 |
4*300 |
5390 |
| J33222 |
Angle rotor |
6000 |
6*300 |
5660 |
| J33223 |
Angle rotor |
6000 |
6*500 |
6600 |
| J30694 |
Plate bucket |
4000 |
4*4*96holes |
2840 |
