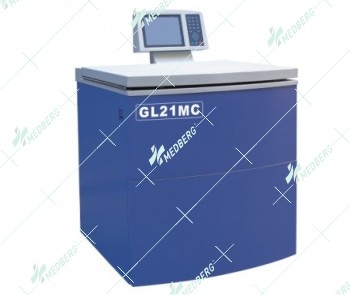

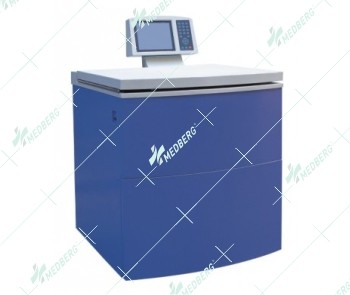

High Speed Refrigerated Centrifuge
Widely used in the area of animal and plant molecular biology, cell biology, clinical applications, bio-engineering, mass preparation and blood, protein precipitation, Separating the biology, viruses, sub-cell, cell and the chemicals in the cell.
Features:
-
Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
-
Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
-
Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
-
Microprocessor control system, the 10 inches LCD display indicates all the parameters in running,
-
There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously.
-
There are 30 kinds of program and 10 kinds of accelerating and decelerating speed for your choice.
-
ω2t centrifugation is allowed, which make you have the ideal centrifugation result.
-
20 kinds of rotors for your choice, especial the continuous rotor help you purify a large amount of test solution continuously.
-
Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
-
The centrifuge body is made of high quality steel, safe and reliable.
-
3 tiers protection steel cover.
Technical parameters:
Catalogue No |
JGL21MC |
Max speed |
21000r/min |
Time range |
1~99H59min |
capacity |
6*500ml |
Temperature range |
-20~40℃ |
Power |
AC110/220V, 50-60HZ,35A |
Max RCF |
46140*g |
Speed accuracy |
±50r/min |
Noise |
≦65dBA |
Temperature accuracy |
±1℃ |
Rotor identification |
Automatic identification |
Weight |
235KG |
Packaged weight |
285KG |
Dimension |
865*728*1240mm |
Packaged dimension |
1000*850*1510mm |
Package |
wooden box |
Matched Rotors for JGL21MC:
Order No. |
Rotor |
Max speed (r/min) |
Max capacity (ml) |
Max RCF (*g) |
J30108 |
Fixed rotor |
21000 |
12*10ml |
44440 |
J30117 |
Fixed rotor |
20000 |
16*10ml |
46140 |
J30111 |
Fixed rotor |
20000 |
6*50ml |
44700 |
J30118 |
Fixed rotor |
20000 |
8*30/20ml |
42040 |
J30119 |
Fixed rotor |
15000 |
8*50ml |
27540 |
J30112 |
Fixed rotor |
15000 |
6*70ml |
25480 |
J30120 |
Fixed rotor |
12000 |
8*100ml |
19610 |
J30121 |
Fixed rotor |
11000 |
4*300ml |
18120 |
J30122 |
Fixed rotor |
10000 |
6*300ml |
15730 |
J30123 |
Fixed rotor |
9000 |
6*500ml |
14860 |
J30128 |
Continuous centrifugal rotor |
17000 |
1000ml |
31390 |
J30129 |
Continuous centrifugal rotor |
14000 |
1800ml |
21710 |
J30130 |
Continuous centrifugal rotor |
8000 |
3000ml |
9450 |
J30131 |
Continuous centrifugal rotor |
8000 |
1800ml |
8600 |
J30132 |
Interval rotor |
17000 |
1000ml |
31390 |
J30133 |
Interval rotor |
12000 |
1200ml |
19350 |
J30134 |
Interval rotor |
10000 |
3000ml |
14890 |
J30135 |
Vertical rotor |
20000 |
16*5ml |
38340 |
Vertical rotor |
18000 |
8*30ml |
32650 |
J30180 |
Swing rotor |
15000 |
4*5ml |
21670 |
J30181 |
Swing rotor |
13000 |
4*30ml |
23580 |
J30182 |
Swing rotor |
10000 |
4*50ml |
16240 |
J30694 |
Bucket rotor |
4000 |
4*4*96holes |
2840 |
J30696 |
Swing rotor |
4000 |
4*500ml |
3380 |
