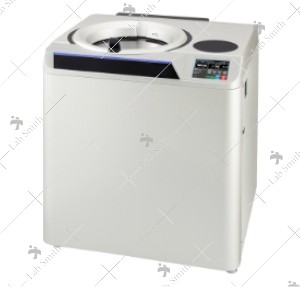

Sorvall WX 90+ Ultracentrifuge
Description
-
Available in 80,000, 90,000 and 100,000rpm models, offering RCF up to 802,000 x g.
-
Small footprint is ideal for labs where space is limited, while a low deck height (86.3cm/ 33.9in) makes rotor loading and unloading easy
-
Non-bolt down design greatly simplifies installation and flexibility to relocate within a facility
-
Self-locking rotor system provides confidence that the rotor is automatically and securely locked
-
Intuitive full color LCD touch screen keeps operation and programming simple. Located at the front of the instrument, this easy-to-navigate graphical display provides quick access to all functions and menus.
-
Monitor instrument status from across the lab with Stat Light, our multi-color, programmable 47cm long LED bar mounted on the front of the instrument for easy visibility
-
Automatic tube balance compensation accelerates sample preparation by allowing visual sample balancing up to 5mm
The extensive rotor portfolio for the Sorvall WX+ ultracentrifuge series supports lab ware from micro tubes to 250mL bottles–providing applications flexibility as your lab’s research focus evolves.
Choose Fiberlite carbon fiber rotors for unequalled durability and high performance.
-
Fatigue-resistance provides structural integrity, eliminating the need to derate or limit the speed over the rotor lifespan
-
Corrosion-resistant design protects against damage due to moisture, chemicals, alkaline solutions or other salts in the laboratory
-
Lightweight rotors improve ergonomics for a safer work environment and minimize the risk of damage to centrifuge equipment
-
Repairable
-
Secure investment, backed by a 15-year warranty†
Specifications:
Catalog number |
75000090 |
Max. Speed |
90,000rpm |
Max. RCF |
692,149 x G (T-890 rotor) |
Refrigerated |
Yes |
Hertz |
50/60Hz |
Voltage |
208/240V |
Ambient Temperature Operating Range |
+10° to +30°C |
Amperage |
16/20A |
Control Speed Accuracy |
±2rpm |
Heat Output |
1kW or below |
Height (English) Exterior |
34.6 in. |
Height (Metric) Exterior |
88cm |
Length (English) Exterior |
27.2 in. |
Length (Metric) Exterior |
69cm |
Memory |
1000 programs with step-runs |
Noise Level |
51dBA (running at set speed, under in-house test condition) measured 1m in front of instrument |
Refrigerator System Type |
Thermo-module cooling system (CFC/HCFC/HFC-free)Solid-state thermoelectric refrigeration (CFC-free) |
Regulatory Standards |
CE and cCSAus |
Temperature Range (Metric) |
0° to +40°C |
Width (English) Exterior |
31.1 in. |
Width (Metric) Exterior |
79cm |
Description |
Sorvall WX 90+ Ultracentrifuge |
Form Factor |
Floor Model |
Weight (English) |
859.8 lb. |
Weight (Metric) |
390kg |
Certifications/Compliance |
CE and cCSAus |
Electrical Requirements |
208 to 240V 50/60Hz |
